Views: 0 Author: Site Editor Publish Time: 2026-08-27 Origin: Site
Achieving commercial shelf stability without compromising the nutritional integrity and sensory profile of dairy products requires exact thermal precision. You must establish and maintain absolute sterile boundaries throughout the entire process. Proteins and calcium degrade rapidly under incorrect heat loads. Selecting components for a UHT Milk Production Line involves navigating high capital expenditures and stringent food safety compliance. Plant managers and engineers face complex operational trade-offs daily. You balance continuous run-times against heavy utility costs while preventing bacterial contamination. We will break down the mechanical components required for a complete, scalable processing line. This technical framework helps you evaluate equipment based on yield optimization, risk mitigation, and long-term operational viability. Understanding these mechanical relationships ensures your facility handles high throughput without sacrificing batch integrity.
Commercial sterility demands precise time-temperature parameters. Operators typically run systems between 135°C and 150°C for a holding time of 1 to 10 seconds. This thermal shock destroys pathogenic and spoilage microorganisms, including heat-resistant spores. Applying this much heat introduces significant biochemical risks to the milk. You must evaluate equipment based on its ability to minimize the Maillard reaction. This chemical reaction between amino acids and reducing sugars causes browning and creates a cooked flavor profile.
The right UHT milk processing equipment prevents severe whey protein denaturation. It maintains essential nutritional components like calcium and vitamins. Rapid heating and immediate cooling lock in the natural sensory characteristics of the dairy product. Holding tubes must be sized correctly to ensure the exact residence time. If the flow rate drops, the milk stays in the holding tube too long, resulting in a burnt taste and heavy fouling on the stainless steel walls.
Establishing baseline capacity requirements in liters per hour dictates your initial equipment sizing. Static capacity rarely supports growing operations. You must evaluate equipment turndown ratios. A high turndown ratio allows a 10,000-liter-per-hour plant to run efficiently at 6,000 liters per hour without destabilizing the thermal profile or wasting energy. Yield optimization directly impacts profitability. You must minimize product loss during water-to-milk and milk-to-water phase changes. These transitions occur at the start and end of every production run.
Advanced mixing-proof valves and precise timing sequences in the automation software reduce the volume of mixed-phase product that goes down the drain. Recovering an extra 50 liters per run adds up significantly over a year of daily operations. To optimize phase changes, operators follow a strict sequence:
Dairy processing operates under strict regulatory oversight. Your facility must meet local and international standards, such as the FDA Pasteurized Milk Ordinance (PMO) or European EHEDG guidelines. These frameworks dictate sanitary design, weld quality, and dead-leg elimination in piping systems. Compliance requires verifiable, tamper-proof data logging for all critical control points.
Inspectors look for unbroken records of sterilization temperatures, holding times, and differential pressures. Modern programmable logic controllers integrate secure data historians. They lock out operators from altering historical data, ensuring complete traceability for every batch released to the market.
The process begins the moment raw milk arrives at the facility. Plate coolers execute rapid temperature reduction, bringing the milk down to below 4°C immediately upon offloading. This halts bacterial growth and stabilizes the raw material prior to processing. Corrugated plates maximize surface area, ensuring efficient heat transfer from the chilled water to the milk.
Next, the milk passes through centrifugal separators and standardization units. These machines perform automated inline adjustments of fat and solid-non-fat ratios. Centrifugal force separates the heavy skim milk from the lighter cream. Automated dosing valves then blend the exact required amount of cream back into the skim line. This guarantees batch-to-batch consistency, whether you are producing skim, semi-skimmed, or whole milk.
Dissolved oxygen and volatile compounds pose severe threats to UHT milk quality. Deaerators utilize vacuum-based technology to remove these elements. The milk enters a vacuum vessel where the pressure drop causes dissolved gases to flash off. Stripping out oxygen prevents oxidation during high-heat treatment.
Oxidation leads to off-flavors and accelerates the degradation of vitamins. Removing air bubbles prevents localized burning and fouling inside the heat exchangers. A properly deaerated product flows smoothly, ensuring uniform heat distribution across the entire volume.

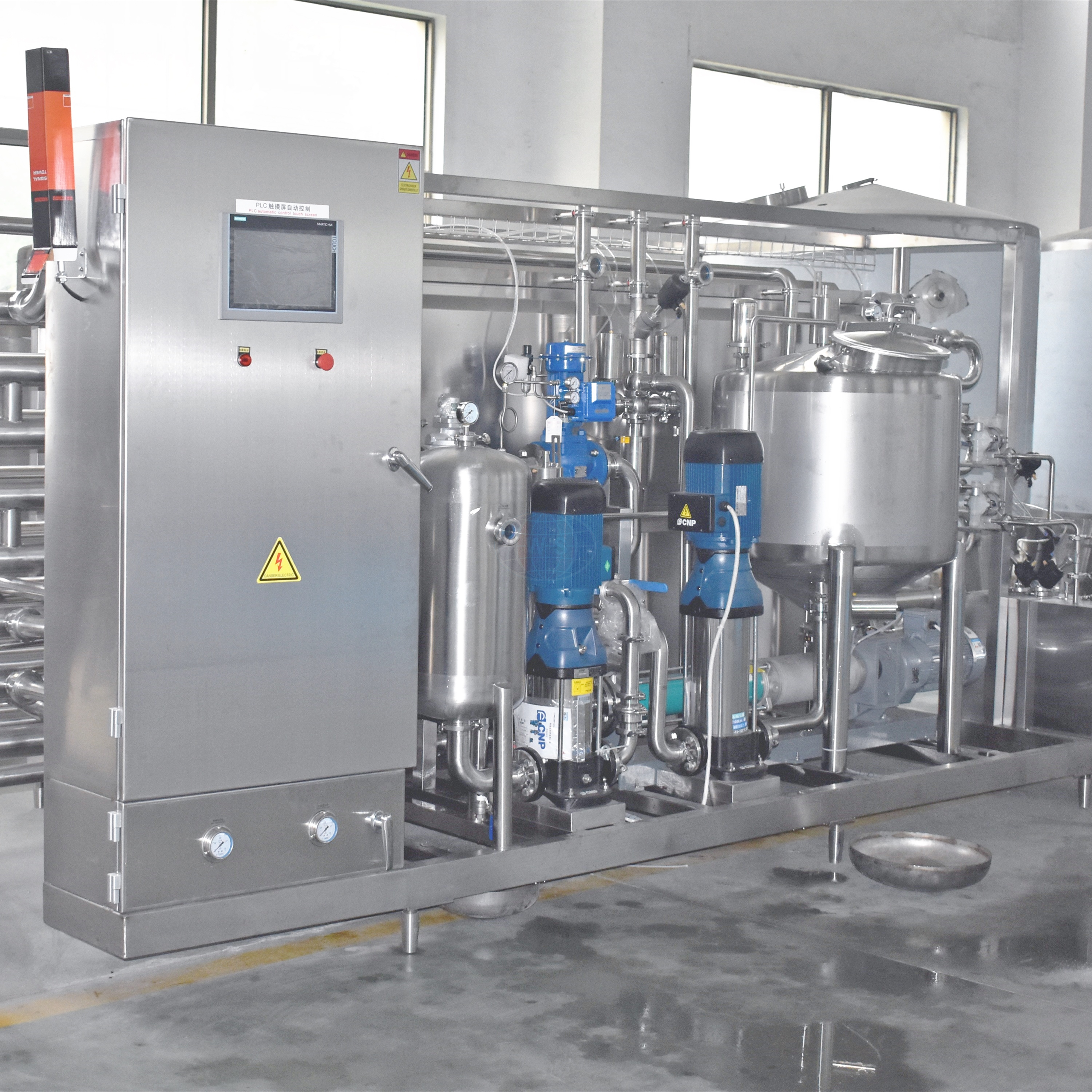

The sterilization unit is the heart of the operation. You have two primary engineering paths: direct and indirect heating. Direct heating systems mix culinary-grade steam directly with the milk. This achieves near-instantaneous heating. The milk then enters a vacuum vessel for flash cooling, which removes the exact amount of water added by the condensed steam. This method works best for premium quality and heat-sensitive formulations because the thermal load is extremely brief. It requires a massive supply of high-purity steam.

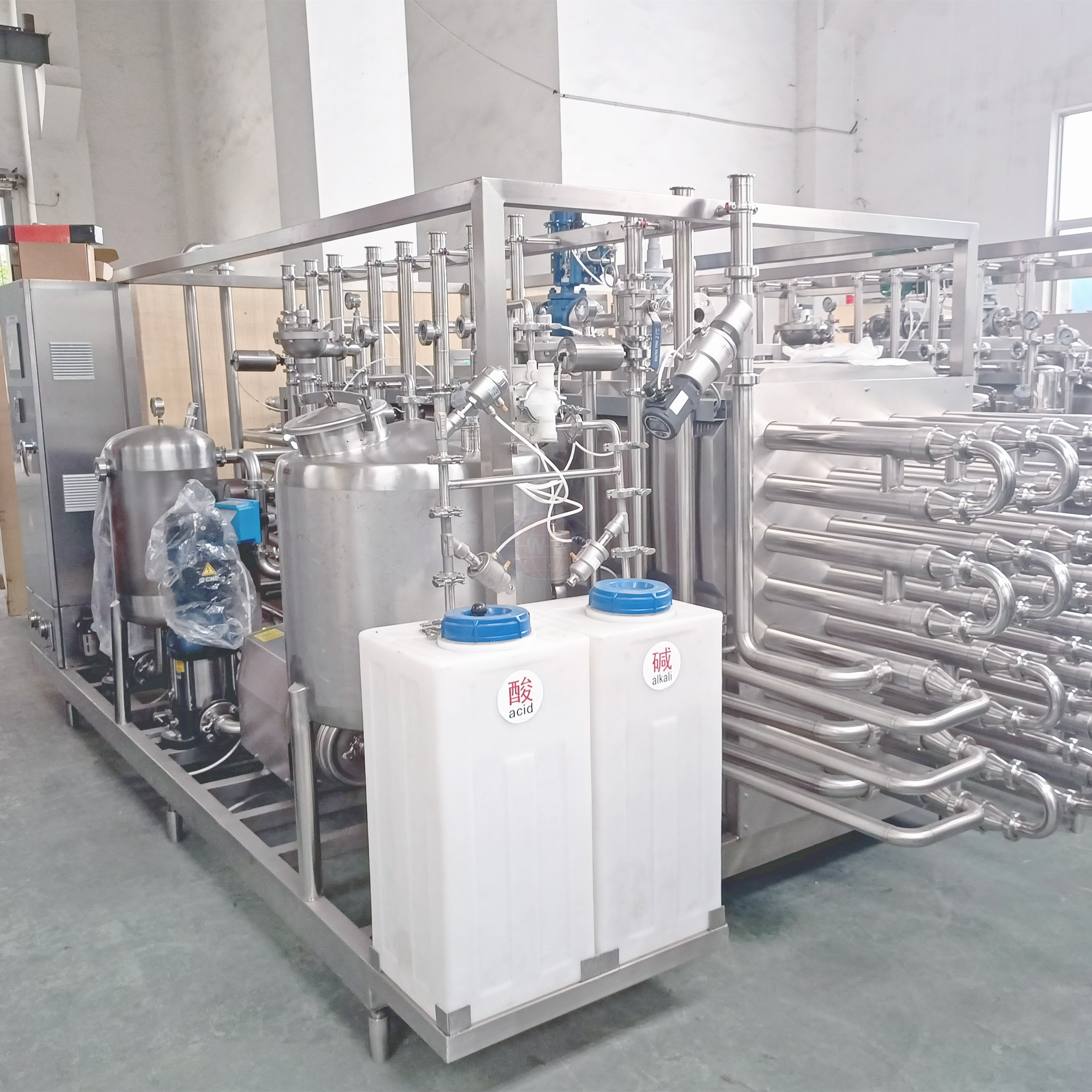

Indirect heating systems use tubular or plate heat exchangers. A physical barrier separates the heating medium from the milk. This creates a gradual heating profile. It offers superior energy efficiency and heat regeneration. The trade-off is a higher risk of protein burn-on due to the longer residence time against hot metal surfaces. Post-heating cooling systems are mandatory. You must integrate rapid cooling via regenerative plates or tubular coolers immediately after sterilization. Dropping the temperature rapidly prevents bacterial spore germination and halts thermal degradation. Delayed cooling results in a brown, cooked-tasting product.
Cooling Phase Parameters
| Cooling Stage | Target Temperature | Cooling Medium | Primary Function |
|---|---|---|---|
| Flash Cooling (Direct) | 75°C - 80°C | Vacuum Expansion | Instantaneous temperature drop, water removal |
| Regenerative Cooling | 20°C - 25°C | Incoming Cold Milk | Energy recovery, bulk temperature reduction |
| Final Chilling | 4°C - 20°C (Depending on filler) | Chilled Water / Glycol | Stabilize product for aseptic packaging |
Homogenization stabilizes the milk emulsion. The machine forces milk through a narrow microscopic gap under extreme pressure. This two-stage high-pressure process reduces fat globule size, preventing creaming and fat separation during long-term ambient storage. Placement logic dictates system design.
Upstream placement occurs before the sterilizer. It is common in indirect systems. Downstream placement occurs after the sterilizer. Direct heating systems require downstream homogenization to break up protein clusters formed during steam condensation and flash cooling. Downstream placement requires a fully aseptic homogenizer design, featuring sterile steam barriers on all moving pistons to prevent recontamination.
Sterilizing the milk is useless if the packaging introduces contaminants. Aseptic filling machines maintain strict sterile boundaries. They utilize hydrogen peroxide baths or electron-beam sterilization to eradicate pathogens on the packaging materials before they enter the filling zone.
Format compatibility matters for production flexibility. You must evaluate filler flexibility for cartons, PET bottles, or pouches within an integrated line. The filling chamber itself remains under positive pressure with HEPA-filtered sterile air. This prevents ambient factory air from entering the aseptic zone during the filling and sealing process.
Utility consumption drives operational expenses. Assessing the regenerative heating capabilities of your equipment is necessary. Indirect systems excel here, offering up to 90% heat recovery. The hot, sterilized milk pre-heats the incoming cold milk across a heat exchanger. This drastically reduces the demand for fresh steam and chilled water.
Direct systems demand high utilities. Because the steam mixes with the product and is then flashed off, you cannot easily recover that thermal energy to pre-heat incoming milk. Facilities operating direct systems must have robust boiler capacities and accept higher monthly energy bills in exchange for premium product flavor.
Manual operation of a UHT plant is impossible due to the precise timing required. You must evaluate programmable logic controllers for automated recipe management. Operators select a recipe, and the PLC automatically adjusts valve positions, pump speeds, and temperature setpoints. Analyzing the efficiency of CIP and SIP protocols is equally important.
These automated sequences dictate chemical usage, water consumption, and turnaround time between production runs. An optimized CIP system uses conductivity sensors to measure chemical concentration, ensuring you do not waste expensive caustic or acid solutions. Faster CIP turnarounds mean more hours available for actual milk production.
Standard CIP Sequence for UHT Plants:
Space requirements dictate equipment selection. Tubular heat exchangers require significant linear floor space. You need room not just for the tubes, but also for pulling the inner tubes out during annual maintenance. Compact plate heat exchangers or direct infusion vessels have a much smaller footprint but may require higher ceiling clearances.
Vendor integration provides a distinct operational advantage. Sourcing end-to-end integrated solutions is generally safer than piecing together standalone equipment from multiple manufacturers. A unified UHT Milk Processing Equipment line ensures seamless PLC communication. It eliminates blind spots in the automation logic and maintains unified aseptic boundaries across all skids.
Scaling up from a lab formulation to a 15,000-liter-per-hour commercial run carries immense risk. Evaluating OEMs that offer pilot plant scale processing equipment is a smart mitigation strategy. Testing formulations on pilot UHT units allows you to validate thermal profiles and sensory outcomes.
Pilot testing reveals how stabilizers, proteins, and fats react to specific heat loads. It allows you to tweak the recipe before committing to full-scale capital expenditure. If a formulation fouls a pilot tubular exchanger in two hours, you know it will cause massive downtime on a commercial line.
The financial structure of your project dictates technology choices. Direct heating systems generally have a lower initial equipment footprint and lower upfront capital expenditure. They incur significantly higher operational steam and cooling water costs over their lifespan.
Indirect heating requires a higher initial capital outlay. The extensive heat exchanger surface areas—whether hundreds of plates or hundreds of meters of stainless steel tubing—are expensive to manufacture and install. This upfront investment yields drastically lower operational expenses due to regenerative energy recovery. You must model these costs over a 10-year horizon to make an informed decision.
Heating System Comparison
| System Type | Heating Mechanism | Energy Recovery | Product Quality Impact |
|---|---|---|---|
| Direct (Injection/Infusion) | Culinary steam mixed directly with milk | Low (Typically under 50%) | Excellent flavor preservation, minimal thermal degradation |
| Indirect (Tubular) | Heat transfer through concentric tubes | High (Up to 90%) | Slight cooked flavor, higher risk of protein denaturation |
| Indirect (Plate) | Heat transfer through corrugated plates | High (Up to 90%) | Moderate cooked flavor, limited by pressure constraints |
UHT equipment operates under extreme stress. You must evaluate the wear and tear on high-pressure homogenizer valves, aseptic seals, and heat exchanger gaskets. Homogenizer pistons endure severe cavitation forces. Aseptic seals degrade under repeated exposure to 140°C steam during SIP cycles.
The financial impact of OEM service level agreements cannot be ignored. A cheaper machine becomes a liability if spare parts take three weeks to ship from overseas. Prioritize vendors with localized spare parts inventory and rapid-response technical support teams. Downtime on a continuous dairy line costs thousands of dollars per hour in lost yield and wasted raw milk.
Fouling is the primary enemy of continuous dairy processing. Protein burn-on and mineral scaling occur inside heat exchangers when milk hits high temperatures. This buildup restricts flow, reduces heat transfer efficiency, and increases backpressure. Eventually, the system forces a premature CIP shutdown.
Mitigation requires precise engineering. Implementing optimized pre-heating profiles conditions the whey proteins, making them less likely to stick to the final heating surfaces. Maintaining high fluid velocities creates turbulence, which physically scrubs the tube walls and delays buildup. Utilizing protein-stabilizing holding tubes at intermediate temperatures also extends run times significantly.
Once the milk leaves the sterilizer, it is highly vulnerable. Any breach in the aseptic zone leads to post-sterilization cross-contamination. The impact is catastrophic: blown packs on store shelves, massive product recalls, and severe brand damage.
Mitigation relies on robust mechanical barriers and strict protocols. Utilizing double-seal aseptic valves with active steam barriers ensures that even if a primary seal fails, bacteria cannot pass through the steam zone. Continuous sterile air overpressure monitoring in the filling chamber prevents ambient air ingress. Rigorous operator training ensures personnel do not bypass safety interlocks or compromise the sterile boundary during minor jams.
A: Direct systems mix milk directly with culinary steam for rapid heating and flash cooling. Indirect systems use a physical barrier, like stainless steel tubes or plates, for gradual heat transfer. Indirect configurations offer superior energy recovery, while direct systems better preserve natural flavor profiles by minimizing thermal load.
A: A complete line requires raw milk receiving and cooling tanks, standardization units, and vacuum deaerators. It also necessitates the core sterilizer unit, post-sterilization cooling modules, an aseptic homogenizer, and a sterile filling and packaging machine.
A: Homogenization forces milk through a narrow valve under extreme pressure to reduce fat globule size. This prevents fat separation and creaming over a 6-to-9-month ambient shelf life. When placed downstream of the sterilizer, the homogenizer must be fully aseptic to prevent recontamination.
A: Continuous run times typically range from 8 to 30 hours. This duration depends heavily on raw milk quality, the chosen heating method, and protein fouling rates inside the heat exchangers. Once flow restricts, operators must initiate a 3-to-4-hour Clean-in-Place cycle.
A: Facilities must supply large volumes of culinary-grade steam for heating and sterilization. You also need a robust chilled water system for rapid post-pasteurization cooling, clean compressed air for pneumatic valves, and a reliable high-voltage electrical supply to power heavy homogenizer motors.
A: Fillers sterilize incoming packaging materials using hydrogen peroxide baths or electron-beam technology. The actual filling process occurs inside a sealed chamber kept under positive pressure with HEPA-filtered sterile air, which blocks ambient factory contaminants from entering.
