How to Size a Cheese Production Line by Capacity, Cheese Type, and Automation

Scaling a traditional cheese recipe into a profitable commercial operation is a tough engineering challenge. Mechanical harmony across the entire production floor is non-negotiable. Small-scale vats often trigger severe production bottlenecks. Conversely, oversized machinery drains capital and inflates daily utility expenses. How do you find the exact sweet spot? Facility planners must evaluate three core pillars: raw milk intake volume, target cheese varieties, and the automation threshold. Let's break down exactly how to engineer your layout to maximize yield, guarantee food safety, and shorten your ROI timeline.

Key Takeaways for Plant Sizing

• Intake dictates infrastructure: Daily raw milk volume is the baseline metric for sizing holding tanks, pasteurizers, and presses.
• Curd characteristics define mechanics: Soft, hard, and pasta filata (stretched-curd) varieties demand distinct thermal and mechanical handling.
• Automation controls OpEx: PLC-driven systems require higher upfront capital but drastically reduce labor costs and batch variations.
• Turnkey integration eliminates bottlenecks: Unified piping and software architectures prevent costly downtime and cross-contamination risks.

Calculating Your Baseline Production Capacity

The foundational step in plant engineering is defining your target dairy production capacity. You do not size equipment based on the final block weight. Instead, you size based on the fluid volume of raw milk processed per batch or per hour. Industry metrics rely on a general 10:1 yield ratio. Simply put, 10 liters of raw milk yields roughly 1 kilogram of cheese. Naturally, this fluctuates depending on the moisture retention of your specific recipe.

Accurate fluid projection prevents catastrophic operational failures. Forcing 5,000 liters of milk through a 500-liter vat ruins curd structure and creates massive thermal delays. On the flip side, running a 10,000-liter system at 20% capacity wastes steam, glycol, and CIP (Clean-In-Place) chemicals.

For operations under 1,000 liters, multi-purpose vats are highly efficient. These jacketed vessels handle heating, coagulation, and cutting in one footprint. However, scaling into the 1,000 to 10,000-liter commercial tier requires a shift in fluid dynamics. Here, raw milk must pass through a dedicated HTST (High-Temperature Short-Time) plate heat exchanger. Heating milk to 72-85°C for 15 seconds ensures pathogen elimination before it is pumped into separate O-type or U-type coagulation tanks. This continuous flow approach minimizes idle time between batches.

Matching Machinery to Cheese Types

A "one-size-fits-all" layout is an engineering myth. Different dairy families require highly specific moisture retention limits, pressing forces, and thermal treatments. Attempting to press a dense Cheddar block using a gravity-drain setup meant for Camembert will fail. Excess whey gets trapped inside the matrix, leading to rapid souring and structural collapse during ripening.

Soft and Semi-Soft Varieties

Soft cheeses like Brie or Feta retain high moisture levels. This demands extremely gentle curd handling to protect delicate protein chains. Gravity-drainage systems replace aggressive mechanical pressing. Vats utilize specialized low-RPM cutting knives. Heavy-duty pneumatic cylinders are entirely omitted from this layout.

Hard and Semi-Hard Varieties

Hard cheeses (Cheddar, Gouda) require aggressive moisture expulsion. Robust cutting and cooking capabilities shrink the curds effectively. More importantly, selecting heavy-duty cheese making equipment is mandatory. Commercial setups utilize pneumatic pressing stations that apply sustained, programmable bar pressure. This consistent force prevents internal fracturing and guarantees uniform block density.

Pasta Filata (Stretched Curd)

Mozzarella and Provolone introduce a complex thermo-mechanical phase. After initial whey drainage, the curd enters a cooker-stretcher. These modules use direct steam injection or hot water baths to melt the curd. Dual-rotating augers then stretch the matrix into a fibrous texture. Standard vats simply cannot replicate this high-temperature kneading process.

Industry Trends: Modularity and Data-Driven Sizing

Current engineering trends in global dairy manufacturing show a massive shift toward modularity and data-driven sizing. Plant managers are abandoning rigid, single-purpose lines. Instead, flexible processing modules allow producers to pivot between Cheddar and Mozzarella based on seasonal milk profiles. Furthermore, sustainability heavily impacts equipment selection. Modern configurations integrate whey valorization units and heat recovery systems. By capturing thermal energy from pasteurizers, plants drastically reduce boiler fuel consumption. Sizing today is about future-proofing. It involves integrating smart IoT sensors that monitor pH and coagulation points in real-time, optimizing yield while driving down organic waste.

Evaluating the Right Level of Automation

Deciding to automate is a mathematical calculation comparing CapEx (Capital Expenditure) against long-term OpEx (Operating Expenditure). Traditional methods rely on human sensory evaluation, which introduces variables. Commercial viability depends on strict safety, yield maximization, and absolute batch consistency.

Manual configurations suit boutique brands positioned in the artisanal market. Upfront costs are lower. Operators manually actuate valves, monitor temperatures, and control pressing times. However, this drives up daily labor costs. It also increases the statistical probability of cross-contamination.

For industrial producers, upgrading to an automatic cheese line is a structural necessity. These systems run on advanced PLCs (Programmable Logic Controllers), such as Siemens or Mitsubishi architectures. They govern automated cutting intervals, precise whey pumping, and dynamic brining times. Enclosed, automated systems mitigate airborne contamination risks. They also ensure temperature curves are replicated with less than a 1% margin of error, capturing valuable fat and protein that would otherwise be lost to the whey stream.

Core Components of a Complete Processing Plant

Understanding linear fluid flow is critical for spatial planning. Regardless of the specific recipe, a standard cheese processing plant requires highly synchronized processing phases.

Reception and HTST Pasteurization

Raw milk enters the reception bay and passes through centrifugal clarifiers to remove physical impurities. It is stored in insulated SUS304 or 316L cooling tanks. Before coagulation, the liquid flows through an HTST plate heat exchanger. This unit rapidly pasteurizes the milk and instantly cools it to the exact renneting temperature via a chilled water/glycol loop.

Coagulation and Curd Handling

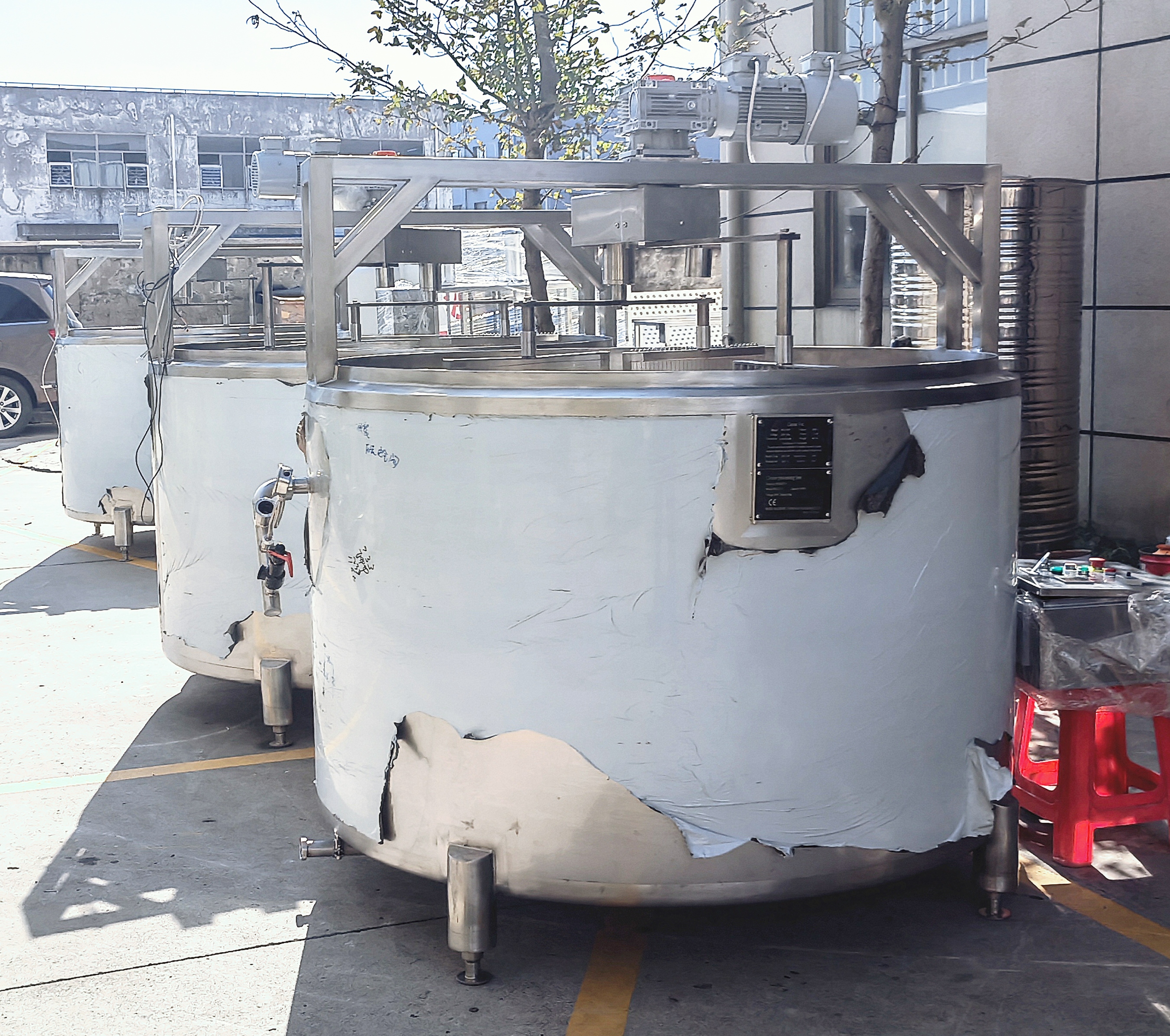

The treated milk enters jacketed vats. Double-wall construction allows steam or hot water to maintain exact thermal parameters. Equipped with variable-speed agitators, the milk is inoculated with cultures. Once a firm gel forms, precision knives cut the matrix to release liquid whey.

Pre-Pressing and Molding

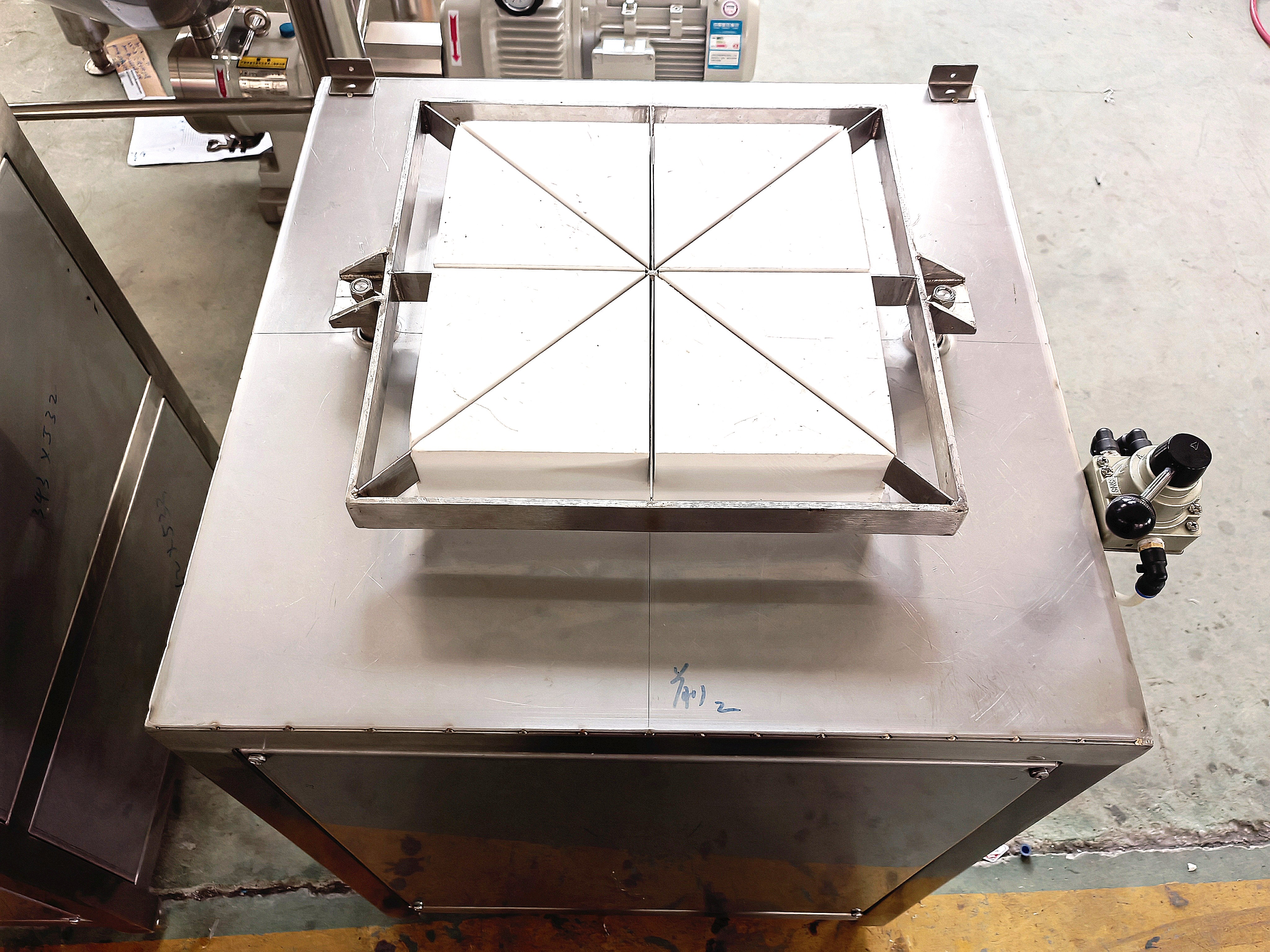

The curd-whey mixture is pumped to a pre-press vat for bulk drainage. Curds are then distributed into micro-perforated molds. These molds transfer to pneumatic pressing stations. Calibrated air cylinders apply even pressure across the entire batch. Finally, the formed blocks are submerged in dynamic, temperature-controlled brining pools to halt acidification.

The Engineering Advantage of Turnkey Solutions

When scaling up, buyers often debate sourcing individual machines versus investing in a comprehensive turnkey cheese plant. Piecing together disparate equipment might look cheaper on a spreadsheet. In reality, it introduces severe technical risks, piping mismatches, and software conflicts.

A dairy facility is a highly synchronized fluid ecosystem. Sourcing from a single manufacturer ensures standardized sanitary fittings, cohesive fluid dynamics, and unified electrical panels. PLC integration is seamless. Furthermore, it provides a single point of accountability. If a pressure drop occurs in the pasteurizer, plant managers do not have to mediate disputes between different vendors. The provider handles the entire lifecycle, from 3D layout drafting and Factory Acceptance Testing (FAT) to on-site commissioning.

Space, Utilities, and ROI Considerations

Before purchasing heavy machinery, conduct a rigorous facility audit. Overlooking infrastructure limits will cripple your commissioning phase. Wet processing zones require sloped epoxy flooring. You must physically separate raw milk reception from clean processing zones to meet stringent food safety mandates.

Industrial setups are utility-intensive. Verify that your building can supply stable three-phase electrical power. You will need industrial boilers for steam, glycol chillers for rapid cooling, and oil-free compressed air to drive pneumatic valves and presses.

Upgrading to modern machinery requires capital, but the ROI is typically realized within 18 to 36 months. Precision-engineered vats reduce fat loss, boosting yield by 1% to 3%. Automation slashes headcount requirements. Efficient CIP systems recycle cleaning chemicals and water, drastically lowering monthly utility overheads.

How to Choose Your Equipment Partner

Selecting the right manufacturer dictates your plant's uptime. Bypass marketing claims and focus on objective engineering metrics. Ensure all food-contact surfaces are constructed from high-grade AISI 304 or 316L stainless steel to resist harsh saline brines and CIP acids. Prioritize suppliers who offer modular, customizable designs. Off-the-shelf machinery rarely meets the exacting demands of commercial recipes.

Ready to engineer your next phase of growth? To minimize technical risks and ensure seamless integration, explore high-performance dairy processing solutions tailored to your exact capacity. Discover complete production lines and customizable modules at WFOOD Machinery today.

Frequently Asked Questions (FAQ)

Q1: How much physical space do I need for a commercial layout?

Footprint depends on your processing volume and aging requirements. A micro-dairy processing 1,000 liters daily needs roughly 1,000 to 1,500 square feet. An industrial operation handling over 10,000 liters requires significantly more space for automated CIP stations, holding tubes, boiler rooms, and climate-controlled ripening shelves. Always consult a facility engineer for hygienic zoning before finalizing your layout.

Q2: Can one automated line produce multiple cheese varieties?

Yes, provided the equipment design is highly modular. The initial reception, pasteurization, and coagulation stages are universally similar. However, downstream processing diverges. A versatile line features bypass piping matrices. This allows operators to route curds to a cooker-stretcher for Mozzarella one day, and redirect them to pneumatic block presses for Cheddar the next.

Q3: What is the typical ROI timeline for an automated system?

For most commercial dairies, ROI falls between 18 to 36 months. Automation drastically reduces hourly labor costs and minimizes human error. Precision cutting and pressing increase overall yield by retaining more fat and protein. Additionally, automated CIP systems optimize water and thermal energy usage, lowering operational overhead.

Q4: Should I buy individual machines or a unified turnkey solution?

While buying individual units seems cost-effective initially, it is strongly discouraged for commercial scale. Mixing vendors causes severe integration bottlenecks, mismatched pipe fittings, and proprietary software conflicts. Turnkey solutions guarantee synchronized fluid flow rates and provide a single point of accountability for commissioning and maintenance.

Q5: How do I calculate the utility requirements for my new plant?

Utility sizing must match your peak hourly load. You need to calculate the steam (kg/hr) required by the HTST pasteurizer and jacketed vats during the heating phase. Simultaneously, calculate the cooling load (kW or Tons of refrigeration) needed for the glycol chillers to rapidly cool pasteurized milk. Do not forget to size your air compressor based on the CFM (Cubic Feet per Minute) required to actuate all pneumatic presses and automated valves simultaneously.

Q6: What impact does CIP (Clean-In-Place) have on equipment sizing?

CIP integration fundamentally changes your piping layout. If you process high volumes, you cannot afford to manually scrub tanks. You must size a dedicated CIP station with separate acid, caustic, and recovery tanks. The machinery you select (vats, pasteurizers, pumps) must feature sanitary spray balls and dead-leg-free valves to ensure high-velocity chemical flushing without dismantling the line.
