How Is a Mozzarella Cheese Production Line Designed for Industrial Production?

The global demand for mozzarella requires dairy processors to transition from batch operations to continuous, high-throughput systems. The low-moisture pizza cheese market drives this need for scale. Scaling mozzarella production introduces severe technical challenges. You must maintain exact fat-on-dry-matter (FDM) ratios. You also need to ensure consistent functional properties like stretchability and meltability. Preventing yield loss while adhering to stringent hygiene standards is critical for plant efficiency. Achieving these metrics requires more than standard dairy equipment. It requires evaluating how a specialized mozzarella cheese production line manufacturer engineers each phase of the process. From milk standardization to continuous stretching, brining, and packaging, every step matters. Proper engineering ensures long-term operational reliability and consistent product output.

• Yield is Engineered, Not Accidental: Industrial profitability hinges on choosing an industrial mozzarella production line designed to capture and retain fat and protein during the coagulation and stretching phases.
• Functional Consistency Dictates Market Value: The mechanical design of the pasta filata (stretching) section directly determines the stretch, melt, and browning characteristics of the final product.
• Hygiene and Automation Drive Uptime: Best-in-class lines integrate advanced Clean-in-Place (CIP) systems and automated recipe management to minimize cross-contamination and reduce manual intervention.

Defining Success Criteria for an Industrial Mozzarella Production Line

Target Product Specifications

You must delineate equipment requirements based on your specific end product. High-moisture fresh mozzarella requires different handling than low-moisture, part-skim (LMPS) pizza cheese. Fresh mozzarella demands gentle molding to retain water. LMPS requires robust moisture extraction and rapid cooling. You need to establish baseline metrics for moisture content, pH targets, and shelf-life expectations early in the design phase. The mechanical configuration of your line will dictate how effectively you can hit these targets day after day. If your equipment lacks the necessary adjustment capabilities, you will struggle with product variability. Operators need precise control over heating, cooling, and mechanical shear to dial in the exact specifications required by downstream customers.

When configuring the line, consider the specific functional requirements of the end-user. Pizza chains require cheese that melts evenly without excessive browning or oiling off. Retail consumers look for fresh mozzarella with a soft, delicate texture and high moisture retention. The equipment must be tailored to these distinct profiles. A one-size-fits-all approach does not work in high-volume dairy processing. You must specify the exact moisture parameters, salt content, and pH levels during the initial equipment design phase to ensure the final installation meets your production goals.

Yield Optimization and Fat-on-Dry-Matter (FDM) Control

Equipment design directly influences the retention of fat and casein. Setting strict FDM targets ensures regulatory compliance and maximizes raw material usage. Legacy systems often suffer from significant yield loss. Fat loss in stretching water is a common failure point. Modern systems engineer the coagulation and stretching phases to lock fat into the protein matrix. This prevents valuable solids from washing down the drain. Every fraction of a percent of fat lost to the whey or stretching water represents a direct hit to plant profitability. Advanced vat designs and optimized cutting programs are essential for maximizing the transfer of milk solids into the final cheese block.

To achieve optimal yield, operators must monitor the coagulation process closely. The firmness of the curd at the time of cutting dictates how much fat and protein will be retained. If the curd is cut too early, it shatters, creating microscopic fines that are lost in the whey. If cut too late, the curd becomes overly firm, making moisture expulsion difficult. Automated sensors in modern vats measure curd firmness in real-time, triggering the cutting sequence at the exact optimal moment. This level of control is a hallmark of a well-engineered industrial mozzarella production line.

Functional Consistency (Stretchability, Meltability, and Browning)

There is a direct correlation between mechanical handling and the cheese protein matrix. Industrial pizza manufacturers demand strict tolerances for blister color and oiling-off. Line design controls these outcomes. If the stretching augers apply too much shear, the protein fibers break. This results in poor stretch and excessive oil release during baking. Precise mechanical control guarantees consistent functionality. The speed of the augers, the temperature of the stretching medium, and the residence time in the stretching chamber all play critical roles in developing the desired pasta filata structure.

The alignment of protein fibers during the stretching phase is what gives mozzarella its characteristic stretch. This alignment requires a delicate balance of heat and mechanical work. Too much heat will melt the fat out of the protein matrix, while too little heat will prevent the fibers from aligning properly. Operators must have the ability to fine-tune these parameters based on the specific characteristics of the curd entering the stretcher. Automated control systems allow for these micro-adjustments, ensuring that every batch of cheese meets the strict functional requirements of the market.

Raw Material Adaptability

The front-end of the line must accommodate variations in milk sources. You might process cow milk, buffalo milk, or reconstituted milk solids. The equipment must handle these changes without compromising the final product structure. Flexible standardization units allow operators to adjust protein-to-fat ratios dynamically. This ensures consistent curd formation regardless of seasonal milk fluctuations. Milk composition changes throughout the year based on the diet and lactation cycle of the herd. Your equipment must be robust enough to handle these variations while still producing a consistent end product.

Standardization is the first line of defense against raw material variability. By precisely controlling the ratio of casein to fat in the cheese milk, operators can ensure predictable coagulation and yield. Automated standardization systems use inline sensors to measure the composition of the incoming milk and automatically adjust the addition of cream or skim milk to hit the target ratio. This eliminates the guesswork and manual calculations associated with batch standardization, resulting in a more consistent and efficient process.

Core Stages of Mozzarella Processing Equipment Design

Milk Reception, Standardization, and Pasteurization

Automated standardization units achieve precise protein-to-fat ratios before coagulation. This ensures consistency regardless of seasonal milk changes. Thermal treatment specifications require careful balancing. You must ensure pasteurization microbial safety while maintaining optimal curd-forming properties. Over-heating denatures whey proteins, which interferes with proper casein coagulation. Precise temperature control is non-negotiable. The pasteurization process must be carefully monitored to ensure that the milk reaches the required temperature for the specified holding time without exceeding the limits that would damage the proteins.

The design of the pasteurizer holding tube and heat exchanger plates is critical for maintaining this balance. High-efficiency plate heat exchangers allow for rapid heating and cooling, minimizing the thermal load on the milk. The holding tube must be sized correctly to ensure that every particle of milk receives the required thermal treatment. Any deviation in temperature or holding time can have a cascading effect on the downstream processes, leading to poor coagulation, reduced yield, and inconsistent functional properties in the final cheese.

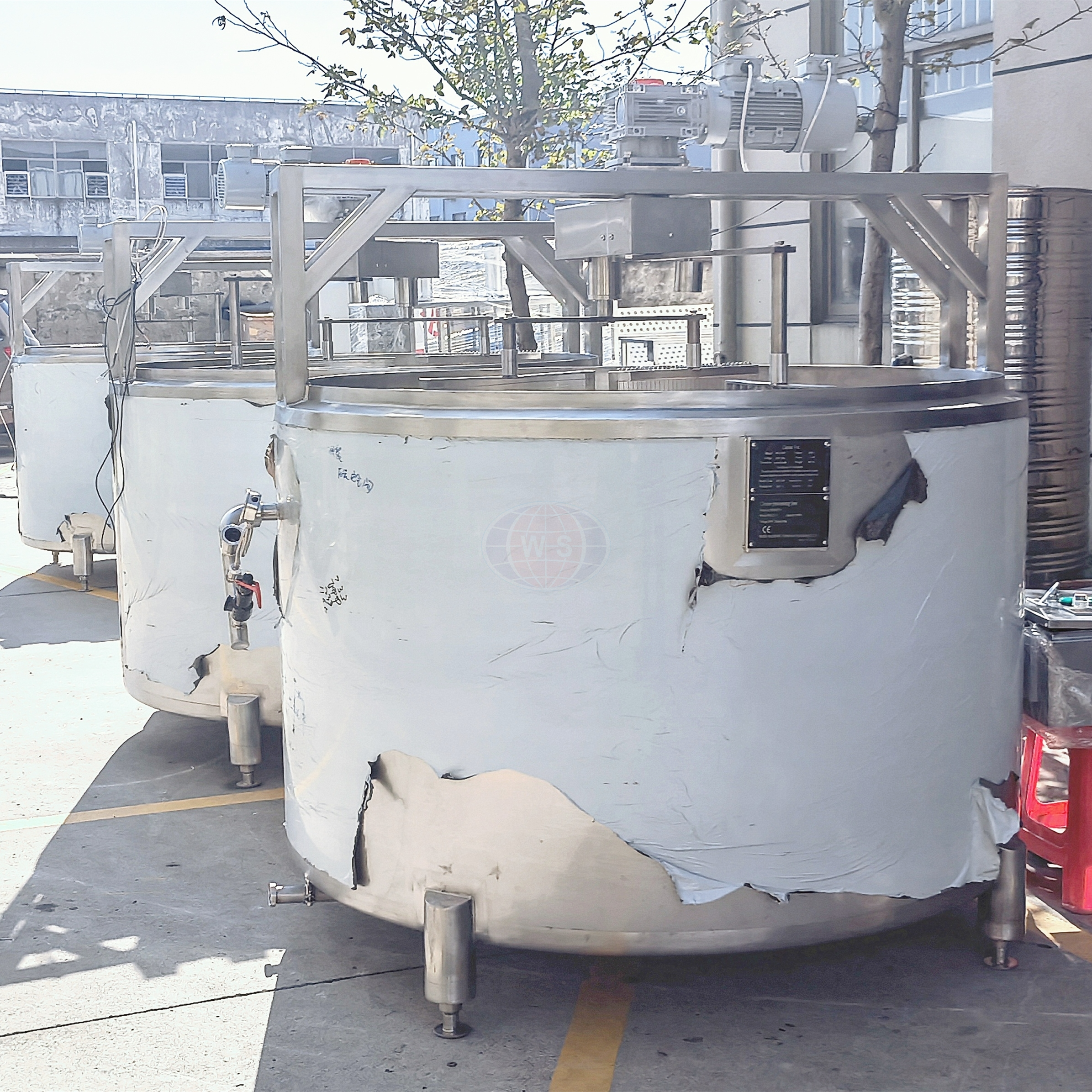

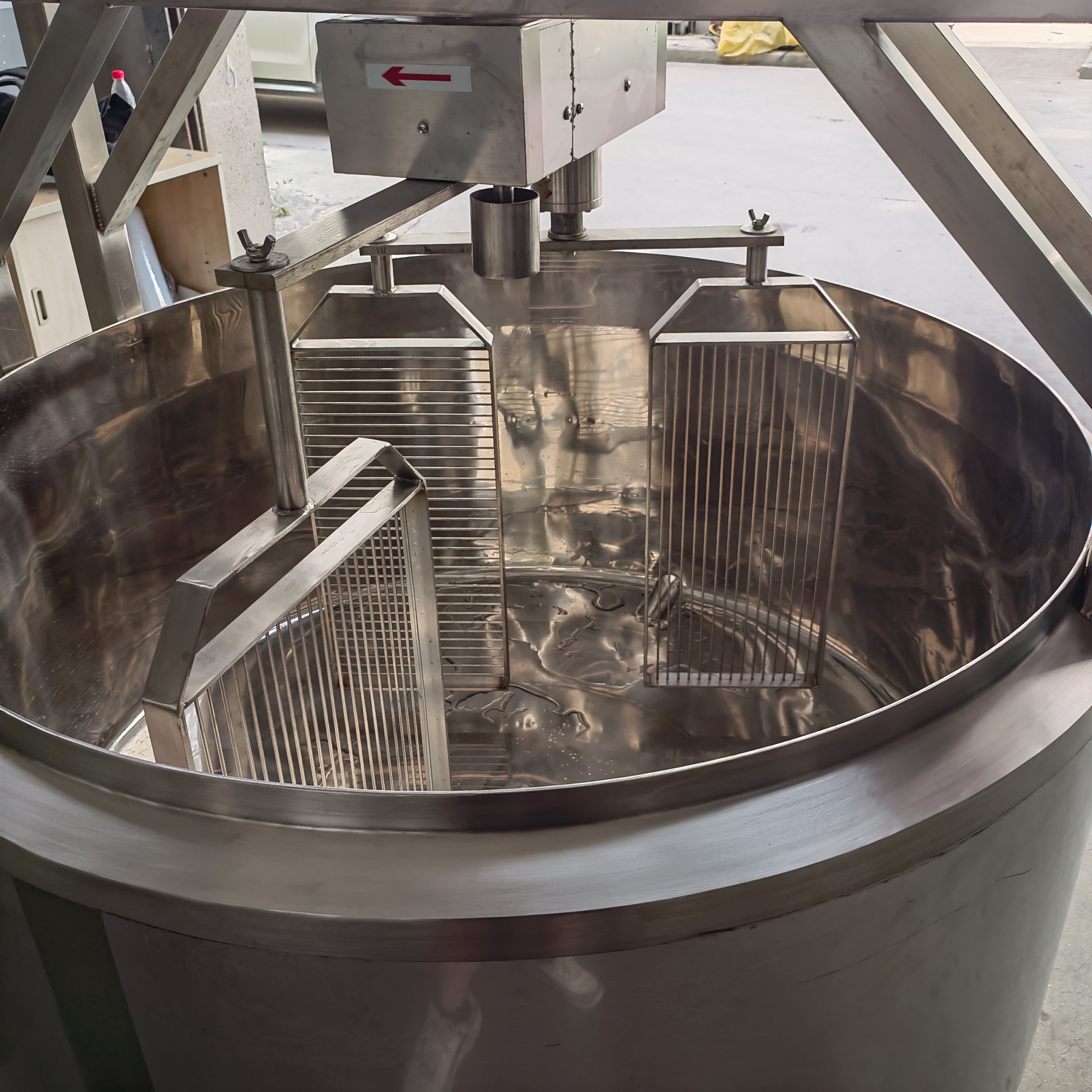

Coagulation and Curd Formation (Vat Design)

Evaluating enclosed horizontal versus vertical cheese vats is critical for large-scale output. Horizontal vats often provide better yield for continuous industrial production. Mechanical cutting precision relies on sharp, automated knife designs. These knives ensure uniform curd size. Uniform curds minimize the generation of micro-curds, or fines. Reducing fines maximizes whey separation efficiency and boosts overall yield. The geometry of the vat and the design of the agitation system also play important roles in ensuring even heat distribution and consistent curd formation.

1. Fill the vat with standardized, pasteurized milk at the precise coagulation temperature.
2. Inject starter cultures and rennet, ensuring thorough mixing with the automated agitators.
3. Allow the milk to set until the curd reaches the optimal firmness, as measured by inline sensors.
4. Initiate the cutting program, using sharp knives to cut the curd into uniform cubes.
5. Agitate the curd and whey mixture gently to promote syneresis and prevent the curds from matting together.
6. Drain the whey through specialized screens that retain the curd particles while allowing the liquid to escape.

The cutting phase is particularly sensitive. Dull knives or overly aggressive agitation will tear the curd rather than cutting it cleanly. This tearing action releases fat and protein into the whey, reducing yield and negatively impacting the texture of the cheese. Regular maintenance and sharpening of the vat knives are essential for maintaining optimal performance. The automated cutting programs must be carefully calibrated to match the specific characteristics of the curd, ensuring a clean cut and maximum retention of milk solids.

The Pasta Filata Process: Stretching and Kneading

The stretching section is the core evaluation point for any mozzarella processing equipment supplier. This stage defines the pasta filata characteristics. Automated auger speed, temperature sensors, and mechanical shear controls align protein fibers. This builds the characteristic fibrous, stretchy structure of mozzarella. The design of the stretching chamber and the configuration of the augers determine how much mechanical work is applied to the curd. Too much work will damage the protein matrix, while too little will result in a crumbly, un-stretched texture.

Stretching Technology	Heating Medium	Primary Advantage	Operational Challenge
Water-Based Stretching	Hot Water	Optimizes moisture content for fresh mozzarella formats.	Risks fat loss into the process water, requiring recovery systems.
Dry (Steam) Stretching	Direct Steam Injection	Eliminates fat runoff and retains higher overall yield.	Requires precise temperature control to avoid scorching the curd.
Jacketed Heating	Steam/Water in Jacket	Provides gentle, indirect heating for delicate curd structures.	Slower heat transfer rates compared to direct injection methods.

The choice between water-based and dry stretching depends heavily on the target product. Fresh mozzarella, with its high moisture content, benefits from the hydration provided by water stretching. However, the process water must be carefully managed to recover any lost fat and prevent environmental issues. Dry stretching, using direct steam injection, is highly efficient for low-moisture pizza cheese. It eliminates the need for process water and maximizes yield by keeping all the fat within the cheese matrix. The steam injection nozzles must be designed to distribute the heat evenly without creating hot spots that could damage the protein.

Molding, Cooling, and Brining Systems

Continuous molding carousels offer flexible systems for quick changeovers. You can easily switch between 2.5 kg blocks and 10 kg blocks. They also handle different formats like balls, logs, or blocks. Pre-cooling and hardening channels stabilize block shape. They preserve the fat structure and control the core temperature before the product enters the brine. Dynamic brining systems manage salt uptake, cooling times, and brine hygiene. This halts acidification and finalizes moisture content. The molding process must be gentle enough to avoid damaging the stretched protein fibers, yet firm enough to create a cohesive block without internal voids.

Once molded, the cheese must be cooled rapidly to lock in the structure and stop the acidification process. Pre-cooling channels use chilled water to drop the surface temperature of the blocks quickly. This creates a firm outer skin that helps the block maintain its shape during the brining process. The brining system itself must be carefully controlled to ensure consistent salt uptake. Salt concentration, temperature, and circulation rates all affect how quickly the salt penetrates the cheese. Automated brine management systems continuously monitor and adjust these parameters, ensuring that every block of cheese reaches the target salt content.

Post-Brining Operations: Stabilization, Freezing, and Packaging

Temperature stabilization controls the internal block temperature to prepare the cheese for downstream processing. Integrating Individual Quick Freezing (IQF) systems for shredded mozzarella requires preserving the protein matrix. This prevents dehydration and poor melt profiles upon thawing. Inline integration of high-speed shredding systems and anti-caking agent applicators prepares pizza cheese formats. Modified Atmosphere Packaging (MAP) uses gas flushing and vacuum sealing to prevent oxidation and extend shelf life. The transition from the brine to the packaging line must be seamless to prevent temperature fluctuations that could affect the quality of the cheese.

For shredded pizza cheese, the IQF process is critical. The cheese must be frozen rapidly to prevent the formation of large ice crystals, which can damage the protein matrix and lead to poor meltability. The IQF belt must be designed to keep the shreds separated during freezing, preventing them from clumping together. Anti-caking agents, such as cellulose or starch, are applied inline to further prevent clumping and ensure a free-flowing product. The MAP packaging system then flushes the bags with a specific mixture of nitrogen and carbon dioxide to displace oxygen, preventing mold growth and extending the shelf life of the product.

Evaluating a Mozzarella Cheese Plant Manufacturer: Engineering and Automation

Sanitary Design and CIP (Clean-in-Place) Integration

You must assess equipment for strict compliance with sanitary standards like EHEDG, USDA-Dairy, or 3-A. A leading mozzarella cheese plant manufacturer designs integrated CIP systems to minimize chemical consumption. Automated CIP cycles reduce turnaround times. They eliminate bacterial harborage points in stretching augers and molding chambers. Proper sanitary design prevents cross-contamination and ensures product safety. Every surface that comes into contact with the milk or cheese must be smooth, accessible, and easy to clean. Dead legs, crevices, and sharp corners must be eliminated from the equipment design.

The CIP system itself must be engineered for maximum efficiency. Automated valves and pumps control the flow of cleaning solutions, ensuring that every part of the line receives the correct concentration of chemicals at the correct temperature and flow rate. The system must be capable of cleaning the equipment thoroughly without requiring manual intervention. This not only reduces labor costs but also ensures a consistent and repeatable cleaning process. Verification sensors monitor the CIP parameters, providing documented proof that the equipment has been cleaned to the required standards before production resumes.

Automation, Recipe Management, and Data Traceability

Advanced PLC systems are necessary for managing continuous, multi-stage product flow. Automated recipe management allows seamless switching between product SKUs. You can transition from high-moisture fresh balls to low-moisture pizza blocks with minimal physical downtime. Industrial IoT enables data logging for batch traceability and quality assurance. It also tracks Overall Equipment Effectiveness (OEE) and supports predictive maintenance schedules. The control system is the brain of the production line, coordinating the actions of every pump, valve, and motor to ensure a smooth and efficient process.

Recipe management systems store the specific operating parameters for each type of cheese produced. When the operator selects a recipe, the PLC automatically adjusts the vat temperatures, cutting speeds, stretching auger speeds, and cooling times to match the requirements of that specific product. This eliminates manual adjustments and reduces the risk of human error. Data traceability systems record every parameter of the production process, linking it to a specific batch number. This provides a complete history of the product, from the incoming milk to the final packaged cheese, ensuring full traceability in the event of a quality issue.

Scalability and Block Flexibility

Designing the plant layout with modular footprints allows for future capacity expansion. You can scale up without requiring a complete redesign of the utility infrastructure. Downstream compatibility is equally important. Ensure the primary production line easily interfaces with secondary dicing, shredding, and bulk-packaging lines. This creates a cohesive, uninterrupted manufacturing process. When planning a new facility or upgrading an existing one, you must consider future growth. The equipment should be designed in a way that allows for additional vats, stretchers, or packaging lines to be added without disrupting the existing operations.

Flexibility in block formats is also crucial for responding to changing market demands. The molding and packaging systems should be capable of handling a variety of sizes and shapes, from small retail blocks to large industrial formats. Quick-change molds and adjustable packaging machines allow operators to switch between formats rapidly, minimizing downtime and maximizing the utilization of the equipment. This level of flexibility ensures that the plant can adapt to new customer requirements and market trends without requiring significant capital investment in new equipment.

Implementation Realities and Risk Mitigation

Managing Installation Downtime and Commissioning Risks

Integrating a continuous industrial mozzarella production line into an existing facility presents physical and operational realities. Brownfield integration requires careful scheduling to avoid disrupting current operations. You must establish clear validation milestones. Protocols for Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) are mandatory. These tests verify yield, moisture, and throughput targets before final handover. The installation process must be meticulously planned and executed to minimize downtime and ensure a smooth transition to the new equipment.

The FAT is conducted at the manufacturer's facility before the equipment is shipped. It involves running the equipment with water or a test product to verify that it meets the mechanical and electrical specifications. The SAT is conducted at the processor's facility after the equipment has been installed. It involves running the equipment with actual milk and curd to verify that it meets the performance guarantees for yield, throughput, and product quality. Both tests are critical for identifying and resolving any issues before the equipment goes into full production.

Supplier Support, Spare Parts, and Maintenance SLAs

Evaluate the manufacturer's global support infrastructure. Check their regional engineering presence and remote diagnostic capabilities. Emergency service availability is critical for minimizing unplanned downtime. Wear-and-tear management requires proactive sourcing. Establish stocking schedules for high-wear components like cutting knives, extruder auger coatings, and molding gaskets. Having these parts on hand prevents catastrophic production halts. A robust maintenance program is essential for keeping the equipment running at peak efficiency and extending its operational lifespan.

Remote diagnostic capabilities allow the manufacturer's engineers to connect to the plant's PLC system and troubleshoot issues in real-time. This can significantly reduce downtime by identifying the root cause of a problem quickly and accurately. Service Level Agreements (SLAs) should clearly define the manufacturer's response times for technical support and spare parts delivery. A reliable supplier will have a comprehensive inventory of spare parts and a dedicated service team ready to assist whenever needed. Proactive maintenance, supported by a strong partnership with the equipment supplier, is the key to maximizing uptime and ensuring the long-term success of the production line.

Conclusion

To ensure a successful deployment of your new processing equipment, follow these critical steps:

• Request detailed process flow diagrams (PFDs) from potential suppliers to verify their engineering approach and equipment layout.
• Schedule visits to operating reference sites to observe the equipment running under real-world industrial conditions and speak with current operators.
• Conduct pilot-scale trials using your specific raw milk compositions to validate stretchability, moisture retention, and yield metrics before signing contracts.
• Establish clear Service Level Agreements (SLAs) for spare parts delivery, preventive maintenance schedules, and remote diagnostic support.

FAQ

Q: What is the standard yield for industrial mozzarella production?

A: The typical ratio is 9 to 11 liters of cow milk per 1 kilogram of cheese. Milk composition, moisture targets, and equipment efficiency dictate this ratio. Systems that effectively retain fat and minimize fines during cutting achieve the best yields.

Q: How does stretching equipment design affect mozzarella stretchability and melt?

A: Mechanical shear and auger design align the protein fibers. If the shear is too aggressive, the protein matrix breaks, leading to poor stretch and excessive oiling-off during baking. Precise temperature and speed controls ensure optimal functional properties.

Q: What is the difference between water stretching and steam stretching?

A: Water stretching uses hot water to heat the curd, which is great for high-moisture cheese but can cause fat loss. Steam stretching injects direct steam, eliminating process water. This retains more fat and increases overall yield for low-moisture pizza cheese.

Q: Why is automated recipe management important for mozzarella plants?

A: It allows operators to switch between different product specifications quickly. You can change moisture targets, auger speeds, and cooling times with a button press. This minimizes downtime and ensures consistent quality across different cheese formats.

Q: How do continuous molding carousels improve production efficiency?

A: Continuous carousels automate the shaping process without stopping the line. They feature interchangeable molds, allowing rapid changeovers between different block sizes or shapes. This flexibility maximizes throughput and reduces manual handling.

Q: What role does pre-cooling play before brining?

A: Pre-cooling hardens the outer layer of the cheese block. This stabilizes its shape and preserves the internal fat structure. It prevents the blocks from deforming when they enter the dynamic brining system, ensuring uniform final products.
