Views: 0 Author: Site Editor Publish Time: 2026-08-06 Origin: Site
Investing in dairy processing equipment represents a high-stakes capital expenditure. A facility expansion directly impacts product safety, shelf-life stability, and long-term operational profitability. Selecting a UHT milk production line manufacturer requires far more than comparing initial equipment quotes. It demands a rigorous evaluation of aseptic integrity, engineering standards, and the supplier's ability to prevent unplanned downtime.
This guide provides a structured, evidence-based framework for evaluating suppliers. You will learn how to assess equipment scalability, thermal efficiency, and automation capabilities. By moving beyond basic specifications, you can build a resilient production environment that maximizes yield and guarantees commercial sterility.
Establishing accurate throughput requirements is the first step in selecting UHT milk processing equipment. You must define current volume needs in liters per hour while projecting future expansion. Running equipment consistently at maximum load accelerates wear on critical components like homogenizer valves and heat exchanger gaskets. Conversely, operating a high-capacity line at partial load often reduces thermal efficiency and increases per-unit utility costs.
When sizing a system, engineers must calculate the required flow velocity to maintain turbulent flow (typically a Reynolds number above 4000) inside the tubular heat exchangers. If the flow rate drops too low because the machine is oversized for current production, the flow becomes laminar. Laminar flow causes uneven heat distribution, leading to severe product burn-on at the tube walls and drastically shortening the run time between cleaning cycles.
To properly future-proof your facility, follow these capacity planning steps:
Modern dairy plants rarely process a single product. Your equipment must handle varying raw milk qualities, fat contents, and viscosities. The system should transition efficiently between standard UHT milk, flavored dairy beverages, and plant-based alternatives like oat or almond milk.
Plant-based proteins present distinct processing challenges. They often cause higher fouling rates in heat exchangers and require specific homogenization pressures to prevent fiber sedimentation. Oat milk, for example, contains beta-glucans that can gelatinize if the heating profile is not precisely controlled, leading to massive pressure drops across the heating section.
Evaluate how the manufacturer engineers their holding tubes and heating profiles to manage starch gelatinization and protein denaturation across diverse product portfolios. A robust system will feature variable speed timing pumps and adjustable back-pressure valves to accommodate liquids with vastly different rheological properties.
| Product Type | Fouling Potential | Typical Run Time Before CIP | Homogenization Requirement |
|---|---|---|---|
| Standard Cow's Milk (3.5% Fat) | Moderate | 8 - 12 Hours | Standard Upstream |
| High-Protein Dairy Beverages | High | 6 - 8 Hours | Downstream Aseptic |
| Oat Milk (Plant-Based) | Very High (Starch Gelatinization) | 4 - 6 Hours | High Pressure / Dual Stage |
| Almond Milk (Plant-Based) | Low to Moderate | 10 - 14 Hours | Standard Upstream |
Commercial sterility is non-negotiable. The processing line must maintain precise temperature controls, typically holding the product between 135°C and 144°C for 2 to 4 seconds. The acceptable margin of error is virtually zero. Even minor temperature drops can compromise microbiological stability, leading to product spoilage and costly recalls.
Engineers measure this sterilization efficiency using F0 values, which calculate the equivalent time at a reference temperature required to achieve a specific log reduction of target bacterial spores (such as Geobacillus stearothermophilus). The manufacturer must provide validated lethality calculations proving their holding tube length and flow rates guarantee the required F0 value under all operating conditions.
Evaluate the chemical and physical stability of the milk post-treatment. Proper thermal processing, combined with effective deaeration and homogenization, ensures the product achieves targeted ambient shelf lives ranging from 3 to 12 months without fat separation or flavor degradation. The cooling section must rapidly drop the product temperature below 25°C to halt the Maillard reaction, preventing the milk from developing a brown tint or a caramelized off-flavor.
Partnering with a comprehensive UHT dairy plant supplier offers a single point of accountability. These manufacturers provide guaranteed system integration, unified control software, and coordinated factory acceptance testing. This approach minimizes the risk of communication errors between different processing modules.
During the Factory Acceptance Test (FAT), a turnkey supplier will assemble the entire line in their facility, run water trials, and verify all PLC logic before shipping. This drastically reduces commissioning time on your plant floor. Furthermore, the Site Acceptance Test (SAT) is streamlined because one engineering team is responsible for the entire process flow, from raw milk reception to the aseptic surge tank.
However, turnkey solutions often command a higher initial premium. You may also face vendor lock-in regarding proprietary spare parts and software updates, which can limit flexibility if you prefer specific auxiliary equipment from other brands. Upgrading a single component later may require expensive software patches from the original turnkey provider.
Working with custom integrators allows you to select best-in-class individual units. You might source a high-pressure homogenizer from one specialized vendor and a tubular heat exchanger from another. This strategy can optimize specific processing steps and potentially lower initial capital costs.
The drawback lies in complex integration. Split liability during equipment failures complicates troubleshooting. If the aseptic tank loses pressure, the tank manufacturer might blame the sterilizer's feed pump, while the sterilizer manufacturer blames the tank's sterile air barrier. Fragmented automation systems increase the risk of PLC communication errors, requiring highly skilled on-site automation engineers to maintain seamless operation and manage the complex digital handshakes between different machine centers.
The choice between Direct UHT (steam injection or infusion) and Indirect UHT (tubular or plate heat exchangers) impacts both product quality and utility consumption. Direct heating provides rapid temperature changes, minimizing whey protein denaturation and preserving a fresher taste profile. However, it consumes significantly more energy and requires culinary-grade steam, which necessitates specialized boiler feedwater treatment.
Indirect heating systems are standard for most milk processing due to their energy efficiency. Evaluate the manufacturer's regenerative heating capabilities. High-quality tubular heat exchangers should achieve at least 90% heat recovery efficiency. In a regenerative system, the hot, sterilized milk pre-heats the incoming cold raw milk. This heat exchange drastically lowers the amount of fresh steam required for the final heating section and reduces the chilled water demand in the final cooling section.
| Feature | Direct UHT (Steam Injection/Infusion) | Indirect UHT (Tubular/Plate) |
|---|---|---|
| Heating Rate | Instantaneous (Fraction of a second) | Gradual (Several seconds) |
| Product Flavor Profile | Excellent (Minimal cooked flavor) | Good (Slight cooked flavor possible) |
| Energy Consumption | High | Low (High regenerative potential) |
| Utility Requirements | Culinary-grade steam essential | Standard plant steam acceptable |
| Capital Cost | High (Requires flash cooling vessel) | Moderate |
The efficiency of core auxiliary modules dictates overall line performance. Deaerators must effectively remove dissolved oxygen to prevent flavor oxidation and protect heat transfer surfaces from rapid fouling. A vacuum deaeration vessel installed before the final heating section pulls non-condensable gases out of the product, which prevents air bubbles from insulating the heat exchanger tubes.
Homogenizer placement is critical. Upstream homogenization (on the pasteurized side) is common, but downstream homogenization (on the aseptic side) is often required for products prone to protein aggregation post-heating. Downstream homogenizers require specialized aseptic designs, including sterile steam barriers on the pistons to prevent environmental bacteria from being drawn into the sterile product zone during the piston's backstroke. Assess the operational pressure ranges and the wear life of the homogenization valves, as these are high-maintenance items.
Aseptic surge tanks provide a crucial buffer between processing and packaging. Scrutinize the design of sterile barrier valves, pressure maintenance systems, and automated cleaning protocols. The tank must maintain a constant overpressure of sterile air (typically around 0.5 to 1.0 bar) to ensure that any microscopic leak pushes product out rather than allowing unsterile ambient air in.
The physical transfer link between the sterilizer and the aseptic filling machine is a high-risk zone for contamination. Evaluate the chemical sterilization interfaces, such as hydrogen peroxide vapor or UV treatments, used to maintain the sterile boundary at the connection points.
The system must manage pressure fluctuations effectively. During emergency packaging machine stops, the processing line must utilize product recirculation loops or sterile water displacement to prevent product burning in the heat exchangers and avoid a complete line shutdown. A well-engineered block-and-bleed valve matrix will safely divert product to a rework tank while maintaining the sterile boundary of the filler feed line.
Advanced PLC and SCADA systems are mandatory for inline monitoring of critical control points. The software must provide electronic data recording that complies with stringent regulatory standards, such as 21 CFR Part 11, ensuring full traceability of every production batch. Operators should not be able to manually override sterilization temperatures without triggering a logged security event.
Assess the manufacturer's programming for automated Sterilization-in-Place (SIP) and Clean-in-Place (CIP) protocols. Look for diagnostic capabilities, predictive maintenance sensors, and seamless integration with your facility's enterprise resource planning systems to optimize production scheduling. Predictive maintenance algorithms can monitor the vibration of homogenizer motors or the pressure drop across a heat exchanger, alerting maintenance teams to replace parts before a catastrophic failure occurs during a production run.
Strict hygienic design prevents microbiological harborage. Verify the elimination of dead-legs in all piping configurations. A dead-leg is any branch in the piping where product can stagnate, making it impossible for CIP fluids to achieve the necessary velocity for proper cleaning. The industry standard dictates that any branch must not exceed a length of 1.5 times its diameter.
All product contact surfaces must utilize 316L stainless steel, and the manufacturer must employ orbital sanitary welding standards to ensure smooth, crevice-free joints. The internal surface finish (Ra value) should be polished to less than 0.8 micrometers. Demand documented certifications from recognized global bodies, such as EHEDG, 3-A Sanitary Standards, or FDA compliance, validating the equipment's sanitary design.

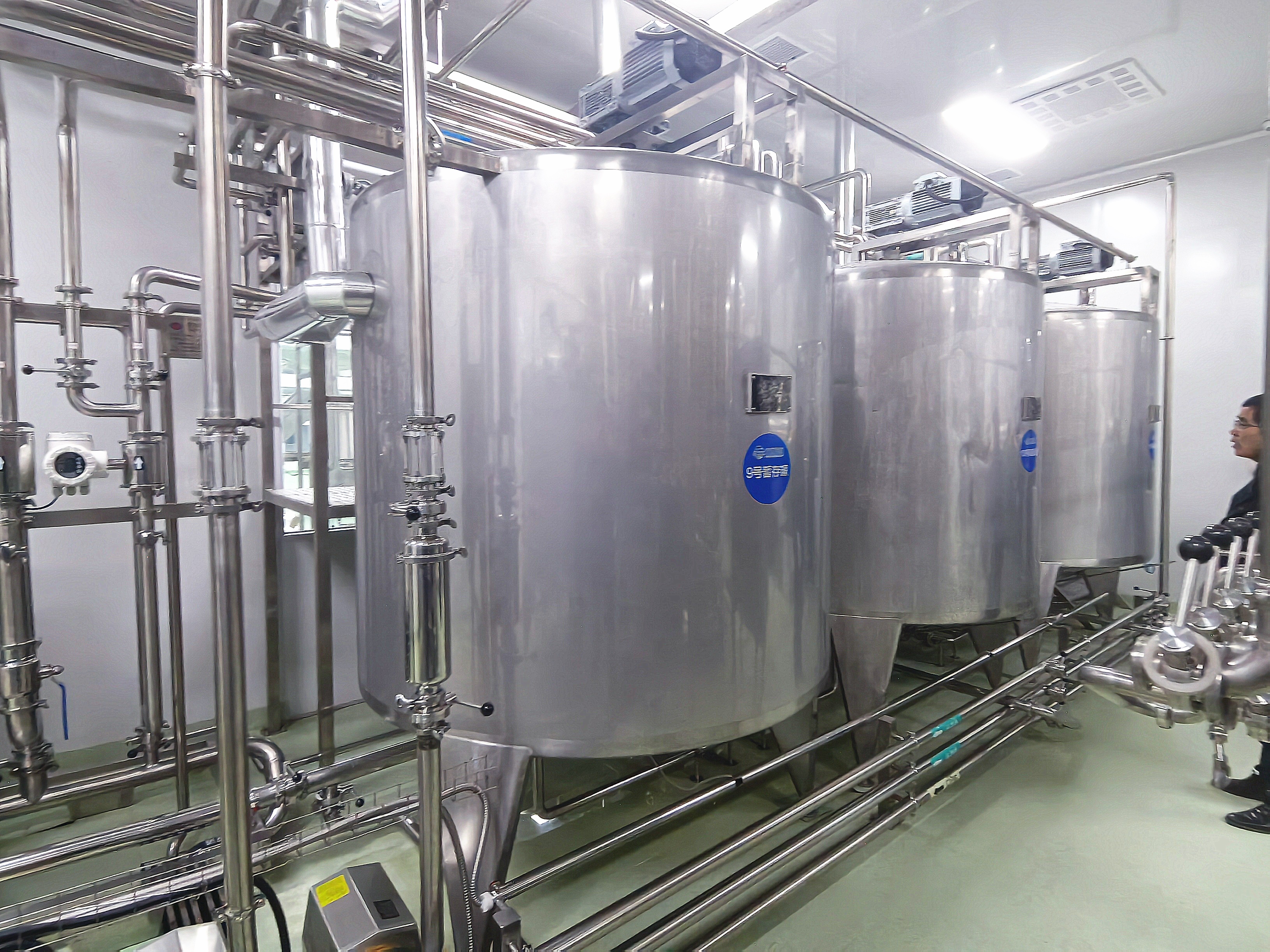

Evaluate the physical layout and space constraints of your facility. Compare compact, skid-mounted modular designs against fully decentralized, on-site piping configurations. Skid-mounted systems reduce installation time and footprint but may restrict access for maintenance. Ensure there is adequate clearance around the homogenizer for pulling pistons and around the heat exchangers for extracting tubes during annual inspections.
Analyze the utility requirements thoroughly. Ensure your facility can supply the necessary compressed air, chilled water, steam quality, and electrical load required by the proposed line without requiring massive infrastructure upgrades. A detailed utility consumption matrix provided by the manufacturer is essential for sizing your boiler and cooling tower capacities.
Long-term costs dictate the true value of the equipment. Build a model factoring in energy efficiency ratings, water consumption, chemical use during CIP, and consumable usage over a 10-to-15-year lifecycle. A cheaper machine that consumes excessive steam will rapidly erase any initial capital savings. Request guaranteed utility consumption figures from the manufacturer, specifically asking for the kilograms of steam and liters of water required to process 1,000 liters of milk.
Evaluate the trade-off between standard, off-the-shelf components and proprietary parts. Standard parts offer easier local sourcing and lower costs. Proprietary parts may guarantee higher performance but carry the risk of shipping delays and premium pricing.
Analyze the manufacturer's recommended preventive maintenance schedules. Understand the lifespan of wear-and-tear parts, such as homogenizer pistons, mechanical seals on centrifugal pumps, and valve gaskets. Calculate their impact on annual uptime. A system that requires a full day of downtime every month for gasket replacement is significantly more expensive to operate than one requiring quarterly maintenance.
Examine the system's efficiency in minimizing product loss during start-up, shutdown, and CIP changeovers. Advanced water displacement techniques and precise interface detection sensors (using conductivity or optical density) reduce the volume of milk flushed to the drain. Mix-proof valve technology allows for simultaneous production and cleaning in different zones of the plant, directly improving yield and reducing effluent treatment costs.
A: With rigorous preventive maintenance, timely replacement of wear parts, and adherence to standard operating procedures, a high-quality processing line typically operates efficiently for 15 to 20 years.
A: CIP frequency depends on the product and heating method. Standard milk processed via indirect heating usually requires CIP every 8 to 12 hours of continuous operation due to protein fouling.
A: No. UHT processing requires significantly higher pressure ratings, specialized aseptic holding tubes, and sterile barrier designs that standard pasteurizers simply do not possess.
A: Direct heating injects steam directly into the milk for rapid heating, preserving flavor but using more energy. Indirect heating uses heat exchangers, which is more energy-efficient but subjects the milk to heat for slightly longer.
A: Downstream homogenization, located after the heating section, breaks up protein clusters that may form during the ultra-high temperature treatment, ensuring a smoother texture and preventing sedimentation in the final product.
