WSGZ-1
WS

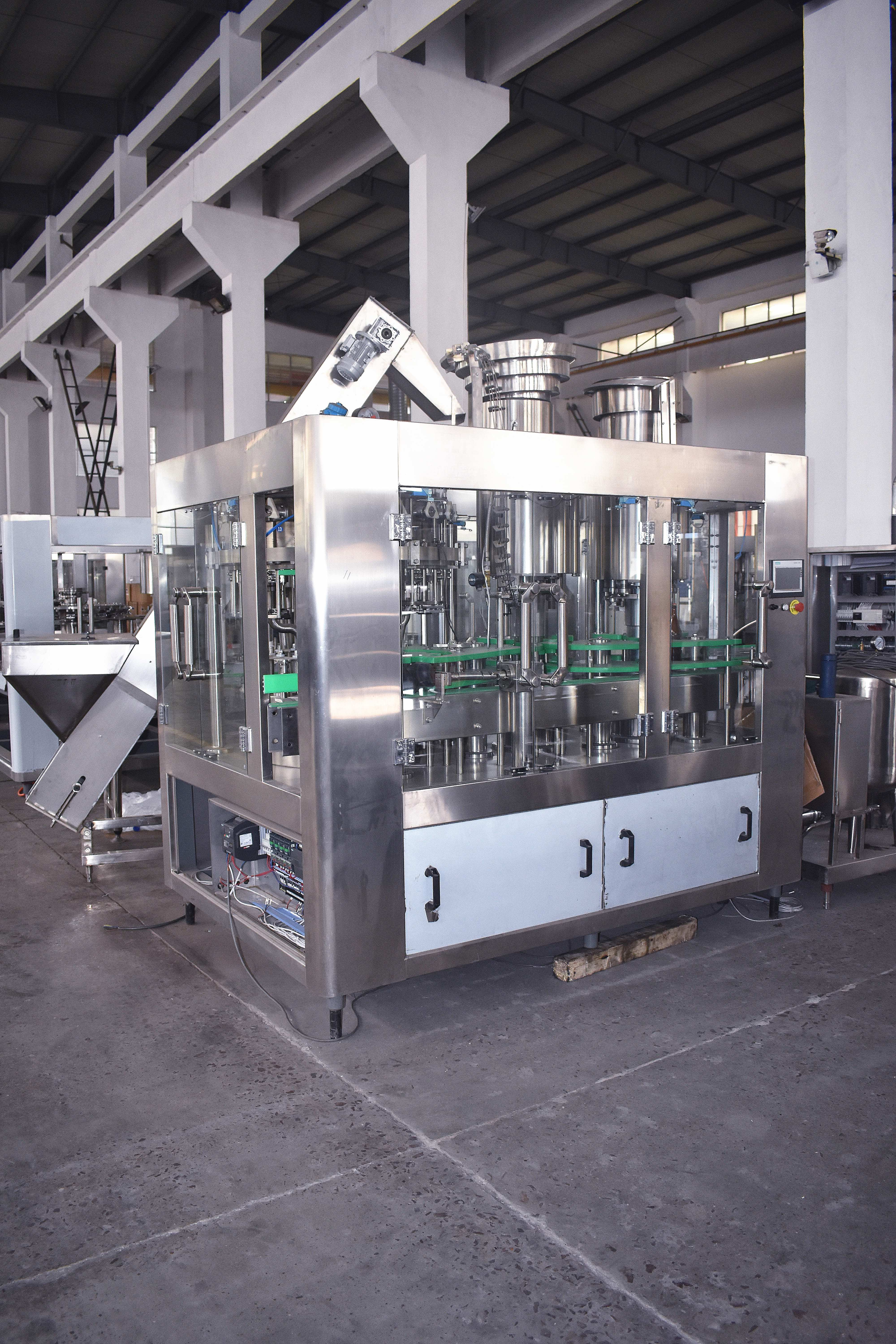

This machine is designed for integrated bottle cleaning, filling, and capping operations, suitable for juice, milk, and various beverages. It utilizes an advanced OMRON Programmable Logic Controller (PLC) to manage automatic functions. The bottle feeding system incorporates a frequency converter for speed adjustment, working in coordination with the main unit’s frequency converter to ensure smooth and reliable bottle movement. It serves as an ideal solution for beverage producers.
1. The machine employs an air supply mechanism with a neck-hanging design, enabling fast bottle loading without squeezing containers.
2. Bottle neck positioning technology is applied for mouth rinsing, preventing contact with threads and enhancing hygiene.
3. A newly designed filling valve ensures precise volume control during filling.
4. With a user-friendly human-machine interface, PLC control, and variable frequency speed regulation, the system includes functions such as automatic cap supply, filling temperature detection, high-temperature alerts, low-temperature shutdown, liquid recirculation, no bottle-no capping, and no cap-no operation.
Model | Capacity(BPH) | Total power(kw) | Size(mm) | Weight(kg) |
| WS-8-8-3 | 2000 | 2.2 | 1940*1440*2200 | 1500 |
| WS-14-12-4 | 3000 | 2.2 | 2340*1640*2200 | 1800 |
| WS-18-18-6 | 6000 | 4.5 | 2500*1950*2200 | 2500 |
| WS-24-24-8 | 12000 | 6.5 | 2840*2140*2200 | 3500 |
| WS-32-32-10 | 15000 | 8.5 | 4130*2740*2200 | 4800 |
| WS-40-40-12 | 18000 | 10 | 4300*3250*2200 | 6000 |
Flashing heads
Connected directly to a pure water supply, the spring-loaded flushing heads rotate bottles 180° along the track to thoroughly clean the interior. The nozzles are arranged in a quincunx pattern with multiple holes, ensuring complete coverage of the bottle bottom angles for efficient washing.
Filling heads
Equipped with high-precision 304/316 stainless steel filling nozzles, the system allows fine-tuned volume adjustment to maintain consistent liquid levels. Using Italian-inspired technology, it operates on a gravity low-vacuum filling principle with a two-stage valve opening mechanism to achieve full liquid level filling.
Capping heads
1. The system features an electromagnetic capping head with placement and torque control, reducing bottle impact during capping.
2. All components in contact with the product are made of 304/316 stainless steel.
3. Capping only occurs when a bottle is present.
4. Automatic stoppage is triggered in case of bottle shortage.
5. Capping performance is consistent and reliable, with a defect rate ≤ 0.2%.
Our strengths:
Customizable designs based on user-specific requirements
Multiple product types can be produced on a single line
Maintains product quality and preserves nutrients
Enables precise addition and mixing of aromatic ingredients
Extends product shelf life
High output with minimal loss
Advanced technology application reduces energy consumption
