What Equipment Is Needed for a Mango Juice Production Line?

The profitability of commercial mango processing hinges on maximizing extraction yield while preserving the volatile flavor compounds, color, and nutritional profile of the fruit. Mangoes present unique processing challenges on the factory floor. High viscosity, large fibrous stones, and a remarkably short harvest window demand robust engineering. Selecting inadequate machinery leads to crushed seeds, which causes severe bitterness in the final batch. It also risks thermal degradation of the juice, frequent downtime, and diminished return on investment. We will provide a systematic breakdown of the required equipment, technical specifications, and critical evaluation criteria. This guide helps you select the right machinery to ensure operational viability and superior product quality.

• Mango processing requires specialized destoning and pulping equipment to handle high fiber content and varying fruit sizes without damaging the seed.
• Preheating and enzymatic deactivation are critical upfront steps to prevent pulp separation and enzymatic browning before final extraction.
• Vacuum degassing, high-pressure homogenization, and rapid sterilization (tubular UHT) are non-negotiable for preventing oxidation and preserving the natural color and Brix levels of the mango pulp.
• Selecting a certified mango processing equipment supplier must be based on their ability to integrate automated CIP (Clean-in-Place) systems and provide scalable, modular capacity.

Success Criteria for a Mango Pulp Production Line

Maximizing output while maintaining strict quality control dictates the success of any fruit processing facility. You must evaluate specific operational metrics to ensure the facility runs efficiently. A poorly optimized line wastes raw material and degrades the final beverage. Plant managers track yield percentages daily to ensure the extraction machinery performs within acceptable tolerances.

Yield Optimization and Waste Reduction

Efficient destoning and extraction directly impact your bottom line. You need metrics for evaluating the efficiency of these stages to ensure maximum pulp recovery. The equipment must strip the flesh cleanly from the fibrous stone. Minimal residual waste should remain on the skins and seeds. High-performance extractors adapt to varying fruit dimensions automatically. This prevents excessive flesh loss during the separation phase. Operators routinely calibrate paddle angles inside the pulper to match the specific mango cultivar being processed.

Preserving Organoleptic Properties

Consumer acceptance relies entirely on taste, color, and texture. Technical requirements for maintaining color, Brix, and flavor profile require precise temperature control. Oxygen reduction is equally critical. Exposure to ambient air causes rapid oxidation, turning vibrant yellow puree into a dull brown liquid. Closed-loop systems and rapid thermal transitions protect these sensitive organoleptic properties. We monitor dissolved oxygen levels continuously throughout the refining stages.

Hygienic Design and Food Safety Compliance

Sanitation failures lead to catastrophic product recalls. Ensuring all equipment meets FDA, CE, and HACCP standards is mandatory. You must focus on sanitary welds, dead-leg elimination, and food-grade materials. Every surface contacting the fruit must utilize high-grade stainless steel. Crevices where bacteria can harbor must be engineered out of the piping and tank designs. Routine swab testing verifies the effectiveness of the automated cleaning cycles.

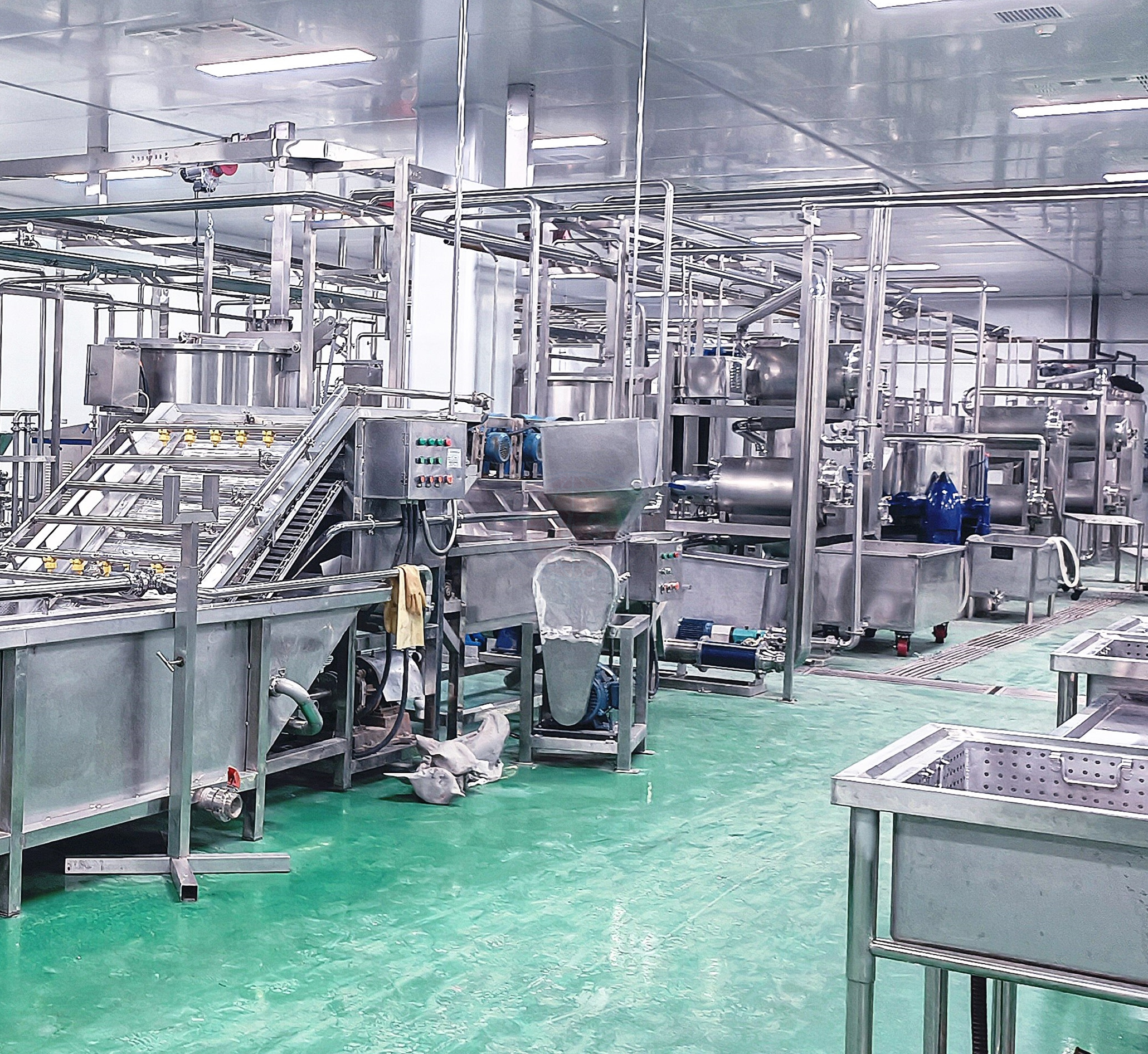

Core Equipment Breakdown: From Fresh Mango to Packaged Juice

Transforming raw fruit into a shelf-stable beverage requires a highly synchronized sequence of machinery. Each stage prepares the product for the next, meaning a bottleneck anywhere disrupts the entire operation. Partnering with a reliable mango pulp production line provider ensures these stages integrate seamlessly.

Reception, Washing, and Sorting Systems

The initial handling stages dictate the purity of the downstream product. Rough handling bruises the fruit, accelerating spoilage. Inadequate cleaning introduces soil and agrochemicals into the extraction phase.

1. Stepped bucket elevators transition harvested mangoes from reception bays to processing lines. They move heavy loads without bruising the delicate fruit.
2. Multi-stage cleaning utilizes bubble washing machines and high-pressure brush spray rollers. This combination effectively removes pesticide residue, dirt, and sticky mango sap.
3. Automated roller inspection conveyors rotate the fruit continuously. Operators or optical classifiers identify and eliminate defective, unripe, or overripe fruit before processing.

Pre-Treatment: Blanching and Preheating

Thermal pre-treatment prepares the cellular structure of the fruit for maximum yield. Continuous blanching and preheating systems provide essential thermal treatment prior to extraction. The equipment rapidly raises whole or sliced mango temperature. This softens the pulp for easier extraction. More importantly, it deactivates naturally occurring enzymes like polyphenol oxidase. These enzymes cause rapid browning and phase separation if left active. Steam injection heaters provide the rapid temperature rise required for this step.

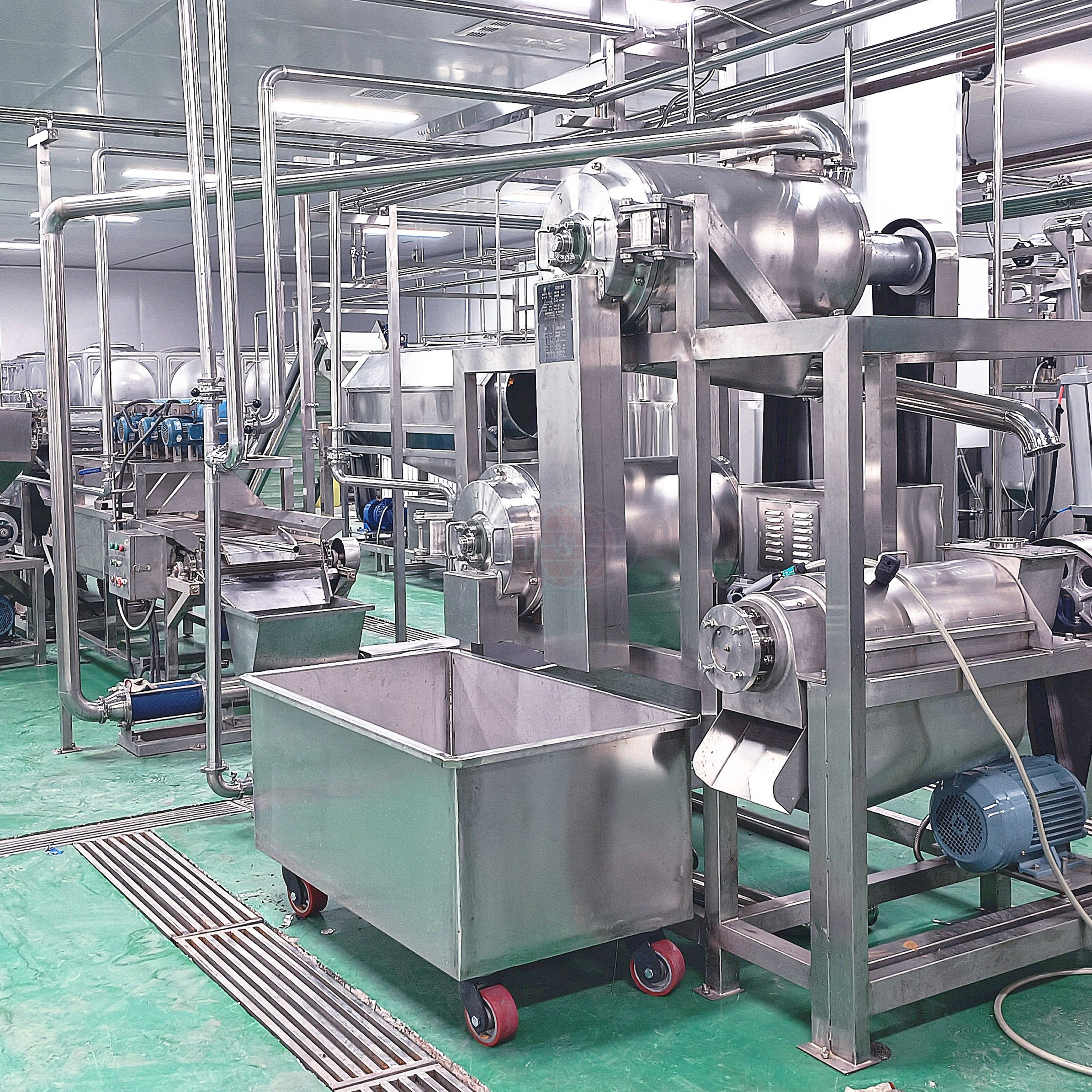

Extraction: Destoning and Pulping Machinery

The extraction phase is where the most critical mechanical separation occurs. Mango seeds are notoriously fibrous and prone to shattering if handled improperly.

• Double-channel mango destoners separate the pulp from the seed. They perform this without crushing the kernel. A crushed kernel releases highly bitter tannins into the juice, ruining the batch.
• Multi-stage mango pulping machines utilize adjustable paddle speeds. They feature specific mesh screens to refine the pulp. This action separates tough structural fibers and skins from the usable puree.

Refining, Batching, and Formulation

Raw puree requires further refinement and blending to meet commercial beverage standards. Consistency in texture and flavor is paramount for brand reliability.

• The integration of duplex filters and rotary vibration screens removes ultra-fine fibers. It clears remaining impurities, ensuring a smooth, uniform base liquid.
• Specialized formulation tanks utilize high-speed shear agitators. Load cells precisely measure ingredients. Operators blend mango pulp with water, sugar, citric acid, and stabilizers to meet exact Brix and acidity specifications.

Processing: Degassing and Homogenization

Physical stability and color retention require specialized mechanical intervention before thermal processing.

• Critical negative-pressure degassers extract dissolved oxygen from the formulated pulp. Removing this oxygen prevents oxidation, preserves the vibrant color, and significantly extends shelf life.
• Industrial homogenizers operate at 20-25 MPa. They break down pulp particles forcefully. This ensures uniform physical consistency and prevents the liquid from separating in the final beverage container.

Thermal Treatment: Sterilization and Pasteurization

Microbial safety must be achieved without destroying the delicate flavor profile. Tubular UHT sterilizers are specifically designed for high-viscosity fluids like mango pulp. They ensure rapid heating and cooling cycles. This achieves commercial sterility without causing thermal degradation or a burnt flavor. Corrugated tube designs increase turbulence, improving heat transfer efficiency for thick purees.

Filling and Packaging Solutions

The final stage secures the processed liquid in sterile environments for distribution. The choice of packaging dictates the required filling technology.

• Aseptic bag-in-drum fillers handle bulk storage. They are ideal for the transport of concentrated or single-strength mango puree to other food manufacturers.
• Hot filling or aseptic carton filling lines cater to consumer markets. These are tailored for ready-to-drink mango juice, nectars, and plastic or glass bottles.

Evaluation Dimensions: How to Assess a Manufacturer

Selecting the right engineering partner is as critical as the machinery itself. A competent mango juice plant manufacturer provides more than just steel; they provide process guarantees.

Engineering Expertise and Customization

You must evaluate the manufacturer's capability to adapt the line for multiple end-products. A rigid system limits market responsiveness. The best systems can pivot between single-strength juice, concentrated puree, clear juice, or nectar with minimal changeover time. Look for modular piping manifolds that allow quick rerouting of product flows.

Automation and CIP Integration

Manual cleaning is prone to human error and consumes excessive downtime. Assessing the quality of PLC control systems is vital. Systems from Siemens or Allen-Bradley offer robust labor reduction. They ensure consistent batch formulation and execute automated, verifiable cleaning cycles. Flow meters and conductivity sensors validate that cleaning chemicals reach the required concentrations.

Material Quality and Scalability

Inferior materials corrode under harsh acidic conditions and aggressive cleaning chemicals. Verifying the strict use of SUS304 or SUS316L stainless steel for all food-contact surfaces is non-negotiable. Furthermore, evaluate modular plant designs. These allow for future capacity upgrades, such as seamlessly scaling from 2 tons per hour to 10 tons per hour.

Value Influencing Factors and Conceptual Trade-offs

Facility design requires balancing initial capital outlay against long-term operational efficiency. Understanding these trade-offs helps you allocate budget effectively.

Turnkey Solutions vs. Multi-Vendor Integration

Deciding how to source your equipment impacts project timelines and integration success. Working with a comprehensive mango juice production line manufacturer simplifies procurement.

Sourcing Strategy	Primary Advantages	Potential Disadvantages
Turnkey Supplier	Single-point accountability, unified control systems, faster commissioning.	Potentially higher upfront capital requirements.
Multi-Vendor Integration	Ability to cherry-pick best-in-class machines for specific stages.	High integration risks, complex troubleshooting, warranty disputes.

Upfront Capital Expenditure vs. Long-Term Operational Costs

Cheaper equipment often consumes more utilities. You must balance the initial premium paid for high-efficiency evaporators and premium heat exchangers. These upfront costs are frequently offset by long-term savings in energy, water, and utility consumption over the lifespan of the plant. Variable frequency drives on large pumps reduce electrical draw significantly.

Implementation Risks and Mitigation Strategies

Industrial fruit processing carries inherent operational risks. Anticipating these challenges prevents costly production halts during critical processing windows.

Managing Seasonal Production Windows

Mangoes have a notoriously short and intense harvest season. Equipment downtime during this window is financially catastrophic. Mitigation requires sourcing from a reliable mango processing equipment supplier. They must offer guaranteed spare parts availability, remote diagnostic capabilities, and rapid SLA-backed technical support.

Handling High-Viscosity Fouling

Thick mango pulp can easily burn or foul heat exchangers. This leads to product loss and extensive cleaning downtime. Mitigation involves specifying corrugated tube heat exchangers specifically designed for high-viscosity products. You must also implement rigorous, automated CIP protocols to maintain thermal transfer efficiency.

Conclusion

• Request detailed Piping and Instrumentation Diagrams (P&ID) from your shortlisted vendors.
• Demand comprehensive utility consumption data to accurately forecast operating expenses.
• Arrange reference site visits to observe the machinery operating under real-world seasonal conditions.
• Verify the automation capabilities and CIP integration before committing to a final design.

FAQ

Q: What is the standard capacity of a commercial mango juice production line?

A: Commercial lines typically range from small-scale operations processing 1 to 2 tons of fresh fruit per hour, up to large industrial facilities handling 10 to 20 tons per hour. Capacity depends entirely on your market demand and capital investment.

Q: What is the technical difference between mango pulp production and clear mango juice processing?

A: Mango pulp production retains the fibrous flesh, resulting in a thick, opaque puree. Clear juice processing requires additional enzymatic treatment and ultrafiltration or decanter centrifuges to strip away all suspended solids, yielding a transparent liquid.

Q: Why is a vacuum degasser strictly necessary in mango juice production?

A: Mango pulp traps air during the pulping and refining stages. A vacuum degasser removes this dissolved oxygen. This prevents rapid oxidation, which would otherwise destroy the vitamin C content and turn the juice an unappealing brown color.

Q: How does the equipment prevent the mango seed from being crushed during extraction?

A: Specialized double-channel destoners use precisely spaced, flexible paddles and specific rotational speeds. They rub the flesh off the stone against a screen rather than crushing the fruit, keeping the bitter kernel intact.

Q: Why is continuous blanching/preheating necessary before the pulping phase?

A: Preheating softens the fruit tissue, increasing the overall juice yield. Crucially, it deactivates polyphenol oxidase and other natural enzymes, preventing browning and ensuring the final product remains physically stable without separating.

Q: What utilities are required to run a mango juice processing plant?

A: A facility requires industrial steam boilers for blanching and sterilization, a robust chilled water system for cooling down pasteurized juice, clean compressed air for pneumatic valves, and a high-volume potable water supply for washing and CIP.
