When processing liquid foods, thermal treatment is a double-edged sword. On one hand, it guarantees food safety and extends shelf life. On the other hand, it acts as a thief, stripping away delicate flavor compounds and altering natural colors. Plant managers and production engineers face this dilemma daily. How do you achieve commercial sterility without serving your customers a product that tastes burnt, flat, or overly cooked?
The answer lies in fluid dynamics and precise thermal control. By utilizing a well-engineered system, processors can lock in the fresh taste while meeting strict microbiological standards. Let's break down exactly how this equipment achieves such a delicate balance.
To understand the solution, we first need to look at the problem. Flavor degradation during pasteurization or sterilization is primarily driven by two factors: the Maillard reaction and the volatilization of aromatic compounds.
When milk is subjected to prolonged heat, amino acids react with reducing sugars. This creates the infamous "cooked" or caramelized notes. In fruit juices, excessive thermal load destroys volatile esters and aldehydes. The result? A flat-tasting juice that lacks its natural, fresh-squeezed punch. Therefore, the goal of modern thermal processing is to minimize the total heat load. We need high temperatures to kill spores, but we need the holding time to be as short as physically possible.

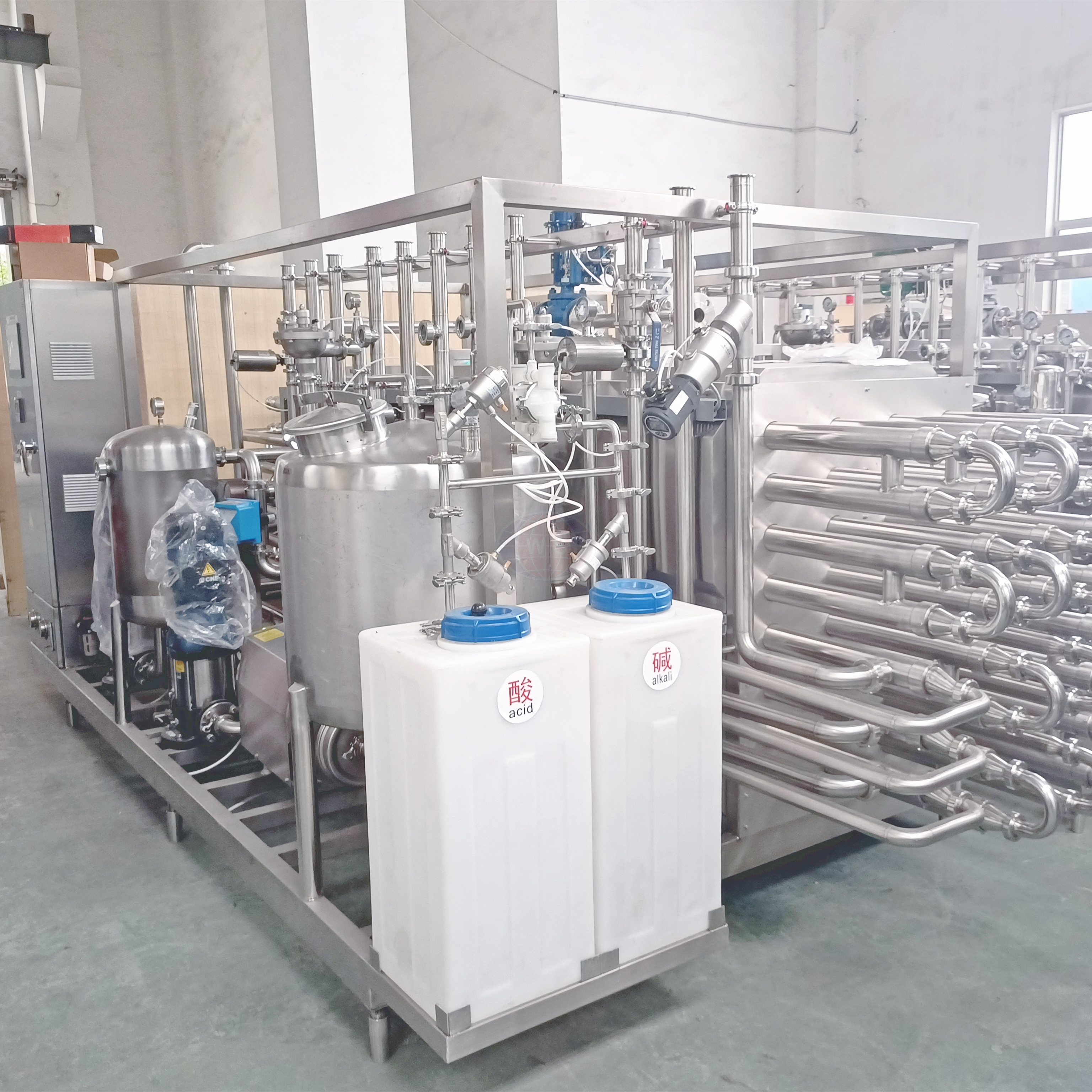

Traditional batch heating is slow and highly destructive to taste. In contrast, a modern tubular sterilizer operates on the principle of High-Temperature Short-Time (HTST) or Ultra-High Temperature (UHT). Here is how the mechanical design directly protects the product's flavor.
1. Extreme Velocity and Turbulence
Inside the heat exchanger, the liquid doesn't just flow; it rushes. Engineers often utilize corrugated tubes to intentionally create turbulent flow. This turbulence ensures that the liquid mixes continuously as it travels. No single drop of product stays against the hot tube wall long enough to burn. Even heat distribution means no localized overheating, which is the primary cause of off-flavors.
2. Rapid Heating and Cooling Gradients
Speed is everything. The system flashes the liquid to target temperatures (often between 135°C and 143°C) in a matter of seconds. After a brief holding period, it routes the product into a cooling section just as fast. This tight thermal window effectively neutralizes bacteria and spores before the chemical reactions that degrade flavor have a chance to fully develop.
3. Indirect Heat Transfer
Unlike direct steam injection, which introduces water into the product and requires a vacuum flash vessel to remove it (often stripping away volatile aromas in the process), tubular systems use indirect heating. The heating medium (superheated water or steam) and the product are separated by stainless steel walls. The original composition, water content, and aroma profile remain completely intact.
Looking at recent shifts in the food and beverage sector, consumer demand for "clean label" and minimally processed foods is at an all-time high. Shoppers are reading ingredient lists. They want natural flavors without artificial additives to mask processing damage.
Market analysis indicates a strong premiumization trend in dairy and plant-based milks. Consumers expect oat milk or almond milk to taste creamy and nutty, not scorched. Similarly, the juice market is shifting away from concentrates toward Not-From-Concentrate (NFC) products. To compete in this landscape, upgrading to advanced aseptic processing equipment is no longer optional for manufacturers; it is a baseline requirement to maintain brand loyalty and justify premium pricing.
When outfitting a production line, engineers usually choose between plate and tubular designs. While plate heat exchangers are excellent for clear, low-viscosity liquids at lower temperatures, tubular systems hold a distinct advantage for high-temperature flavor protection and product versatility.
| Feature | Tubular System | Plate System |
|---|---|---|
| Flavor Protection at UHT | Excellent. Handles 137°C+ with minimal fouling. | Moderate. Gaskets limit extreme high-temp stability. |
| Particulate Handling | High. Perfect for juices with pulp or dairy with additives. | Poor. Prone to clogging and damaging particulates. |
| Fouling & Burning Risk | Very low due to high turbulence and lack of dead zones. | Higher risk at contact points, causing burnt flavors. |
| Operating Pressure | Can withstand very high pressures (up to 100 bar+). | Limited by gasket strength. |
Theory is great, but what does this look like on the factory floor? When evaluating a UHT sterilization machine, specific technical parameters dictate its ability to protect taste. Based on top-tier equipment standards in the industry, here are the numbers you should be looking for:
Choosing the right configuration depends entirely on what flows through your pipes. A mismatch here will cost you both product quality and maintenance downtime.
Specifically, if you are processing standard fluid milk or plant-based alternatives, a multi-tube design is highly efficient. It provides the massive surface area needed for rapid heat transfer. When acting as a dedicated milk sterilizer, ensure the system includes an integrated homogenizer interface upstream of the final heating section to maintain a creamy mouthfeel.
Furthermore, if your production involves high-viscosity products like mango puree or liquids containing fruit bits, you must opt for a concentric tube (tube-in-tube) configuration. Using this as a juice sterilizer ensures that fruit pulps pass through without being crushed or sheared, preserving both the texture and the natural aroma profile.
This happens due to the Maillard reaction, where natural sugars and proteins react under heat. If a system is poorly calibrated, has low flow velocity, or suffers from a prolonged holding time, this reaction accelerates. High-quality tubular systems prevent this by utilizing extreme turbulence and ultra-fast heating/cooling cycles to bypass the reaction window.
Yes. Concentric or corrugated tube designs offer an unobstructed flow path. Unlike plate heat exchangers that have narrow, zig-zagging channels, tubular systems allow particulates to pass through smoothly. This preserves the physical integrity and the fresh mouthfeel of the pulp.
Holding times vary based on the product's pH and viscosity, but for most standard juices, a holding time of 4 to 15 seconds at target temperature is sufficient. This short duration is enough to achieve commercial sterility while preventing the thermal degradation of volatile flavor esters.
It relies on fluid velocity. By maintaining a high pump speed and utilizing corrugated inner tubes, the system creates a highly turbulent flow. The liquid constantly scours the tube walls, preventing any single layer of product from lingering against the hot surface long enough to burn.
Protecting the flavor of your beverages during high-temperature processing is not a matter of luck; it is a matter of superior engineering. The right equipment minimizes thermal stress, prevents fouling, and delivers a product that tastes as fresh as the raw ingredients. If you are looking to upgrade your production line, ensure you select a system tailored to your specific viscosity and capacity needs. Explore professional-grade solutions and find the exact configuration for your plant at Wiskind Food Machinery today.
